COL-02064-038-14-CZ - Datasheet
MBA
Category Information

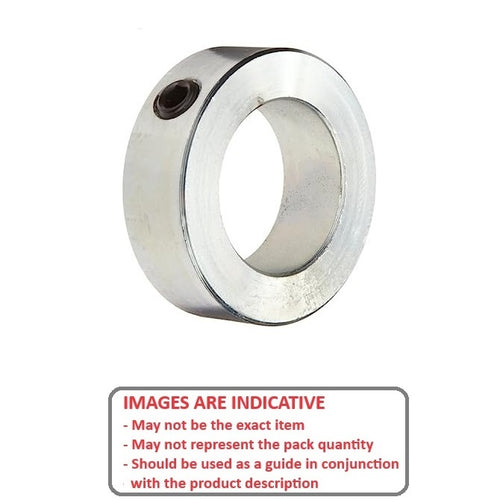

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
20.638
mm
(Equiv. 0.813 in.) - Outside Diameter (D)
38.10
mm
(Equiv. 1.5 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Screw Size 5/16-18 UNC (7.94mm)
- Material Steel, Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 6432K26
- NoCor SC-0812-ZC
- SC0812ZC
- LSC-13
- LSC13
