COL-02064-033-14-CBO - Datasheet
MBA
Category Information

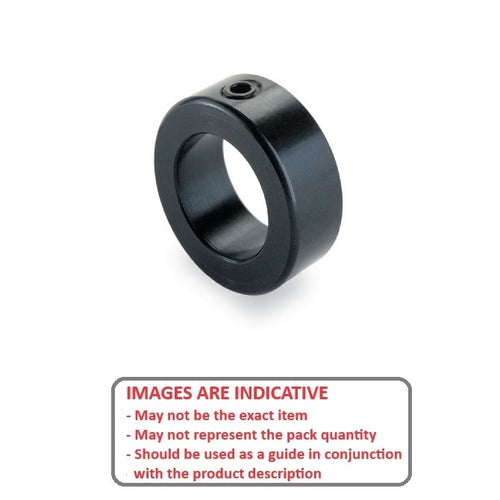

Collars - Shaft - Standard - SteelSteel Standard Shaft Collars. Includes miniature precision types. Carbon steel.
- Static torque and axial load are for reference only using steel cup point grub screw on soft steel shaft
Product Data
- Suitable Shaft Size (d)
:
20.638
mm
(Equiv. 0.813 in.) - Outside Diameter (D)
33.34
mm
(Equiv. 1.313 in.) - Overall Width (S)
14.3
mm
(Equiv. 0.563 in.) - Material Steel, Black Oxide Coated
Product Compliance and Data
Additional Resources
Cross References
- 9414T76
- NoCor SC-0812-BO
- SC0812BO
