FL-20-W300 - Datasheet
MBA
Category Information

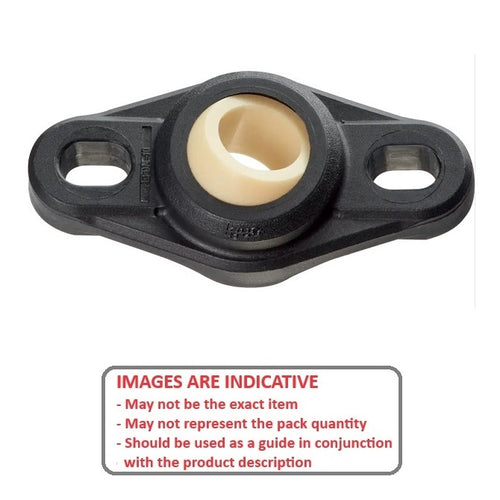

Housing and Bearing Assembly - Flanged 2 Bolt - Aligning - W300W300 Self Aligning Flanged 2 Bolt Housing Assembly. With integral self aligning plain bearing.
- Housing: Igumid G.
- Ball: Highly wear resistant Iglidur W300.
Product Data
- Nominal Shaft Size
:
20.00
mm

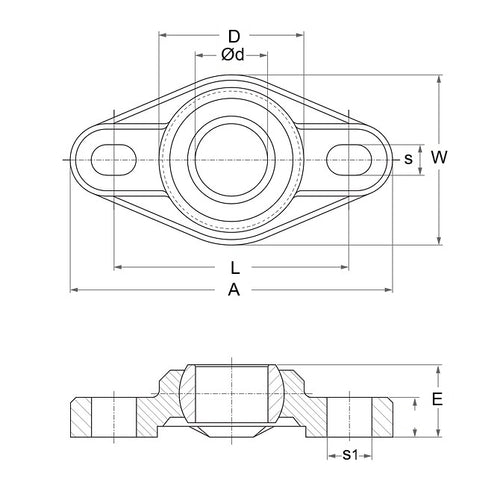

(Equiv. 0.787 in.) - Overall Length (A)
65.000
mm
(Equiv. 2.559 in.) - Overall Height (E) 20.000 mm
- Min to Max Shaft Dia. 17 mm
- Base Height (D) 11.000 mm
- Bolt Hole Size (s) 8.4 x 12.5 mm
- Bolt Hole Centres (L) 47.000 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus EFOM-20
- EFOM20
- I707
- I-707
