IP-181RS - Datasheet
MBA
Category Information

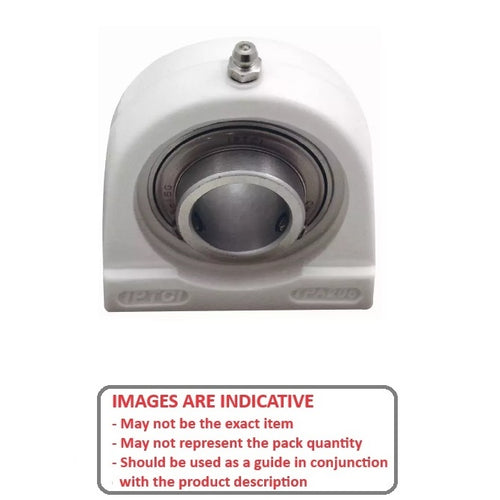

Housing and Bearing Assembly - Tapped Base - Thermoplastic and StainlessThermoplastic and Stainless Tapped Base Housing Assembly. Thermoplastic housed units offer a more favourable economic choice. Stainless steel bearings offer a high level of corrosion resistance and all metal parts are made from either 302, 304 or 440C stainless steel.
- Operating temperature minus 20 oC to +95 deg C
- Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
- Excellent mechanical, thermal and electrical properties.
- All sleeves, bushings and grease fittings are 300 grade stainless steel.
- Food grade

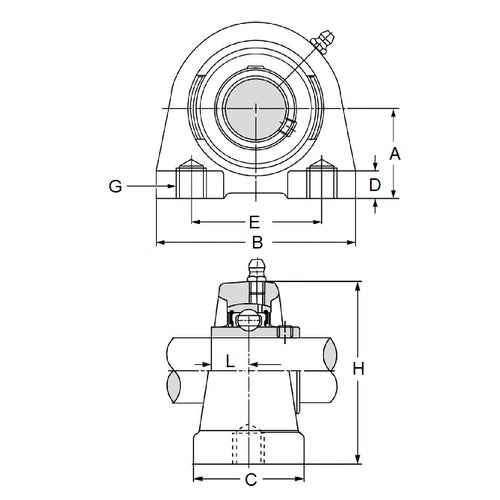

Product Data
- Bore
:
20.000
mm
(Equiv. 0.787 in.) - Centre Height (A)
33.300
mm
(Equiv. 1.311 in.) - Width (B)
73.000
mm
(Equiv. 2.874 in.) - Depth (C) 35.000 mm
- Bolt Depth (D) 13.000 mm
- Bolt Distances (E) 50.800 mm
- Thread (G) UNC
- K 66.000 mm
- L 18.300 mm
