Miniature Bearings Australia
OR-02030-262-S70-117-R - Datasheet
MBA
Category Information
O-Rings - Silicone RubberSilicone Rubber O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food appliactions.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance.
- Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.

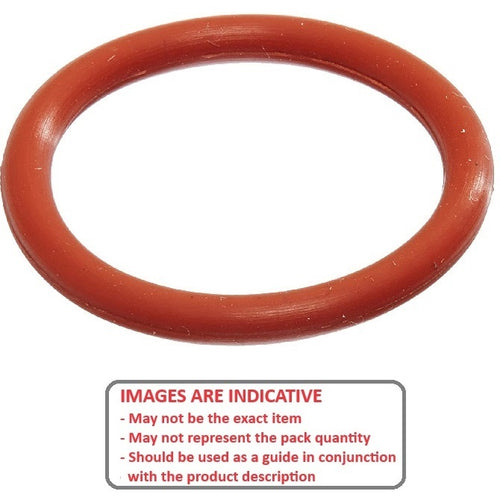

Product Data
- Inside Diameter (ID)
:
20.30
mm
(Equiv. 0.799 in.) - Section (t)
2.62
mm
(Equiv. 0.103 in.) - Colour Red
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- 1283N59
- Small Parts ORS-117
- BS117SIL70
- BS117-SIL70
- BS117SIL70RED
- BS117-SIL70-RED
- ORS117
