Miniature Bearings Australia
W0029-F-005-0965-S3 - Datasheet
MBA
Category Information

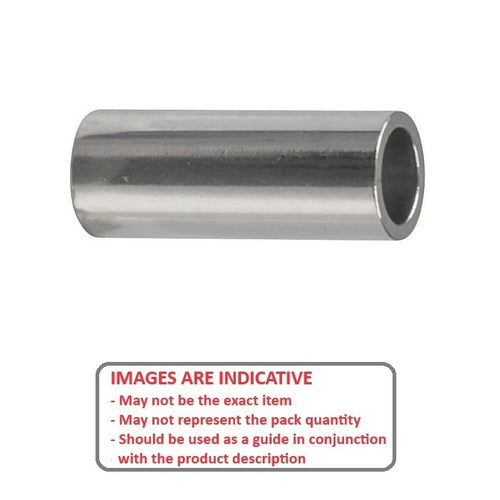

Spacers - Through Bore Round - Stainless SteelStainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

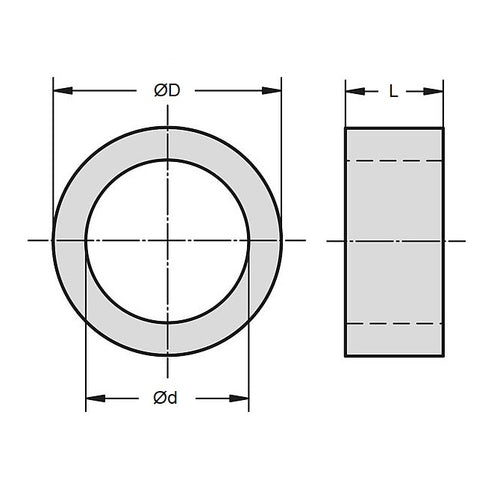

- ID (d)
:
2.92
mm
+ 0.1 / - 0.0
(Equiv. 0.115 in.) - OD (D)
4.762
mm
(Equiv. 0.187 in.) - Length (L)
9.65
mm
(Equiv. 0.38 in.) - Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 92320A695
- A 9X43-F1212
- A9X43F1212
- A9X43-F1212
