RS27-35-ZP - Datasheet

MBA

Category Information

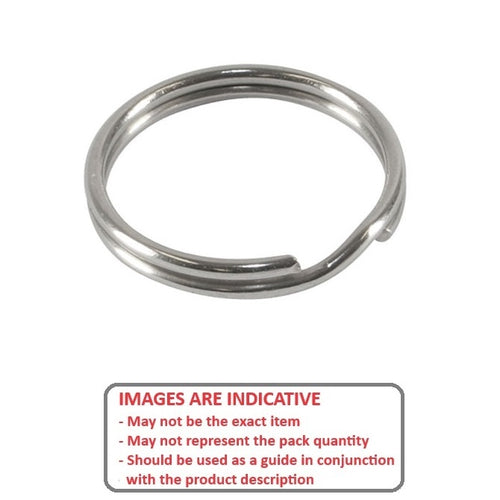

Rings - Split - Zinc Plated Steel

Zinc Plated Steel Split Rings. Zinc plated hard drawn steel wire rings.

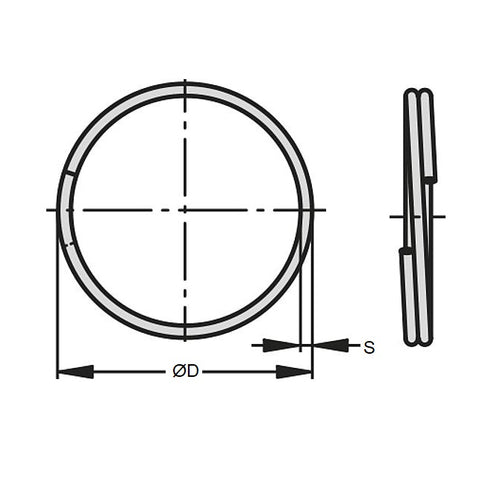

    Product Data

    • Wire Thickness : 2.70 mm
      (Equiv. 0.106 in.)
    • Inside Diameter 35.4 mm
      (Equiv. 1.394 in.)
    • Outside Diameter 40.8 mm
      (Equiv. 1.606 in.)
    • Material Carbon Spring Steel Zinc Plated
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • SRH-30
      • SRH30
