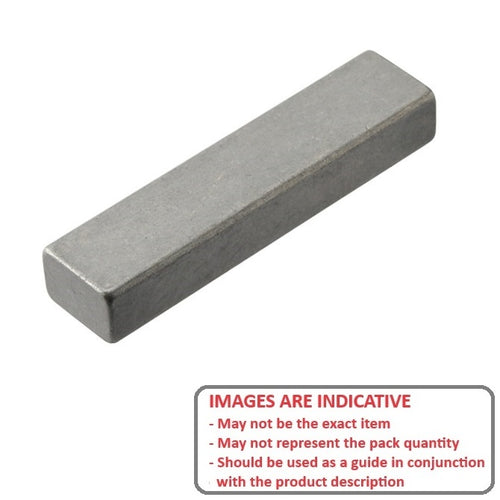

K-0278-0278-0650B-6 - Datasheet
ExaktKey
Category Information
Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

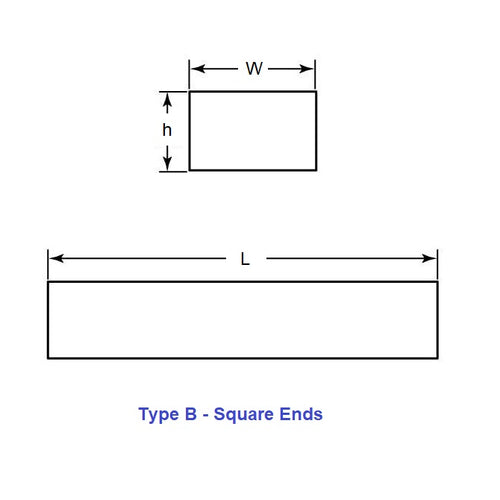

- Width (W)
:
2.778
mm
+/- 0.025
(Equiv. 0.109 in.) - Height (h)
2.778
mm
+/- 0.025
(Equiv. 0.109 in.) - Length (L)
6.50
mm
+/ - 0.50
(Equiv. 0.256 in.) - Finish Plain
- Tolerance Type Unilateral
- End Type B (Square Ends)
- Material Stainless Steel 316 (Similar to A4, 18-10)
