Miniature Bearings Australia
SH-21RS - Datasheet
MBA
Category Information

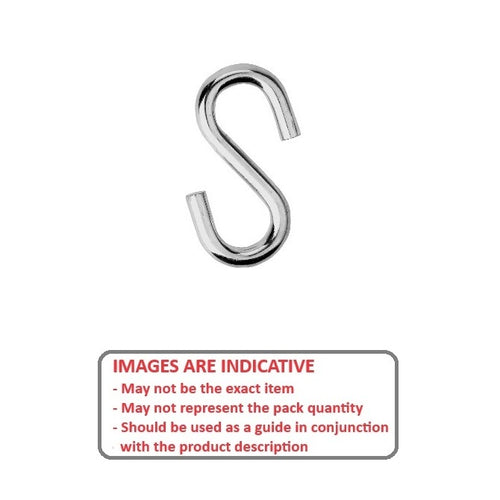

Hooks - S Shape SteelS Shape Steel Hooks. Low carbon cold drawn steel with zinc plated finish
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Any deviations such as angular lifts, shock loads, modifications will result in drastically reduced maximum loads.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

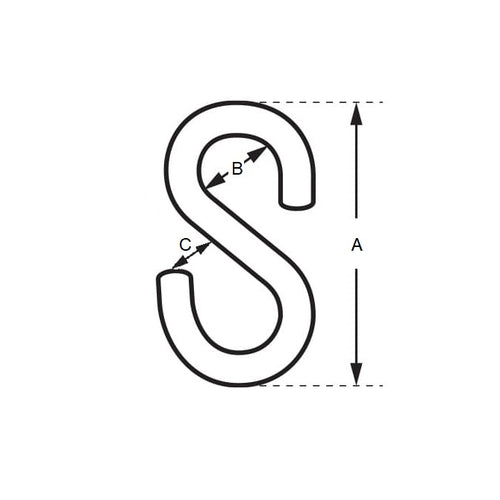

- Wire Thickness
:
2.667
mm
(Equiv. 0.105 in.) - Length (A)
25.400
mm
(Equiv. 1 in.) - Eye Diameter (B)
7.938
mm
(Equiv. 0.313 in.) - Opening (C) 3.962 mm
- Max Load 7 Kg
