Miniature Bearings Australia
DB-0264-H-064 - Datasheet
MBA
Category Information
Tools - Drill Bits - StandardStandard Drill Bits Tools. Extensive range of drill bits, from larger standard sizes down to as small as 0.32mm micro miniature sizes. Sutton - PN - Bordo.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- Lengths shown are based on standard stock but may vary.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter
:
2.64
mm
(Equiv. 0.104 in.) - Material High Speed Steel

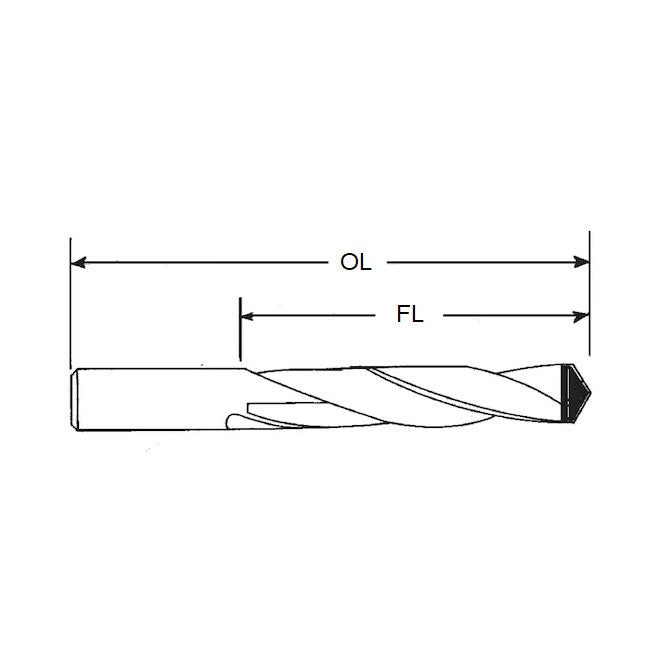

- Overall Length (may vary)
63.50
mm
(Equiv. 2.5 in.) - Gauge 37
- Finish Bright
- Flute Length 36.51 mm
- Material High Speed Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Sutton 062426
- Small Parts HSD-37
- HSD37
