Miniature Bearings Australia
W0025-F-005-080-BN - Datasheet
MBA
Category Information

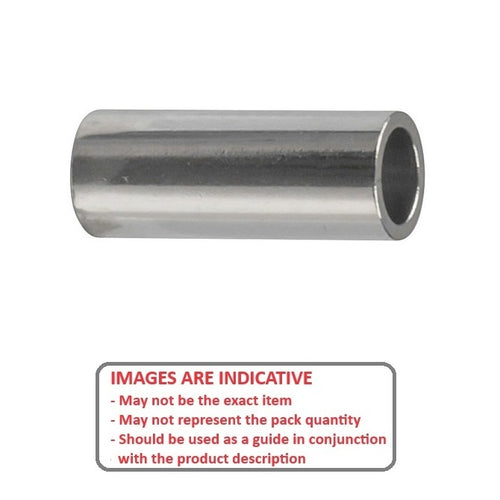

Spacers - Through Bore Round - BrassBrass Through Bore Round Spacers. Shaft spacers - Brass
- An expanded range may be available on special order. Please enquire.
Product Data

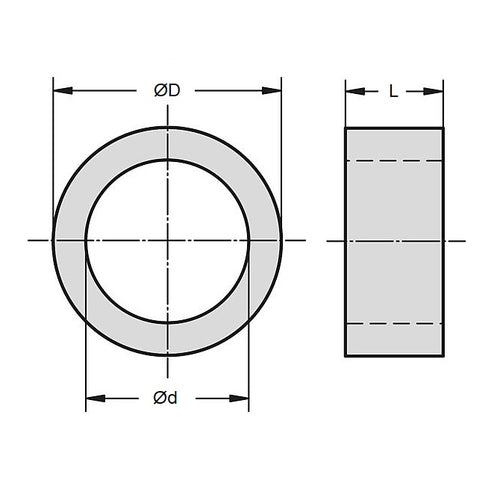

- ID (d)
:
2.5
mm
+ 0.38 / + 0.18
(Equiv. 0.098 in.) - OD (D)
5
mm
+ 0.0 / - 0.03
(Equiv. 0.197 in.) - Length (L)
8
mm
+ / - 0.09
(Equiv. 0.315 in.) - Material Brass - Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- PLB258
- PLB2.5-8
