PLBP-025-053-BSD-003 - Datasheet
MBA
Category Information

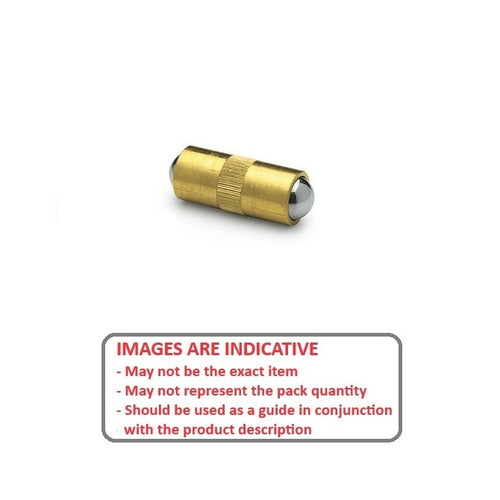

Plungers - Ball Push Fit - Brass Body Stainless Ball Double EndedBrass Body Stainless Ball Double Ended Ball Push Fit Plungers. Used for indexing and positioning of components
- Once installed, it applies adequate pressure so the ball remains positioned
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

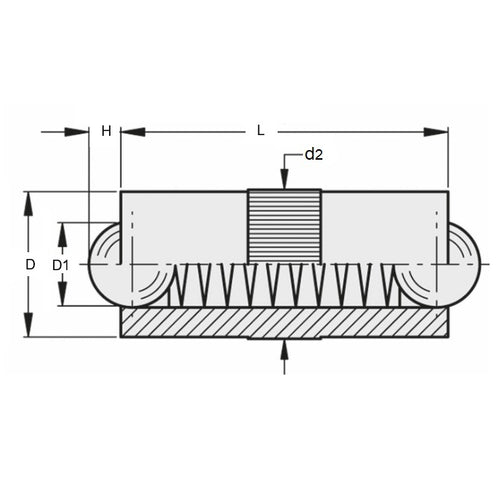

- Body Diameter (D)
:
2.50
mm
(Equiv. 0.098 in.) - Length (L)
5.30
mm
(Equiv. 0.209 in.) - Initial Pressure (F1) 1.30 N
- Final Pressure (F2) 2.50 N
- Ball Diameter (D1) 2.00 mm
- Ball Height (H) 0.65 mm
- Body Material Brass
- Weight (Approx) 1
- Material Stainless Steel 400 Series Hardened
Product Compliance and Data
Additional Resources
Cross References
- GN.32305
