PSP-025-012-C - Datasheet
MBA
Category Information

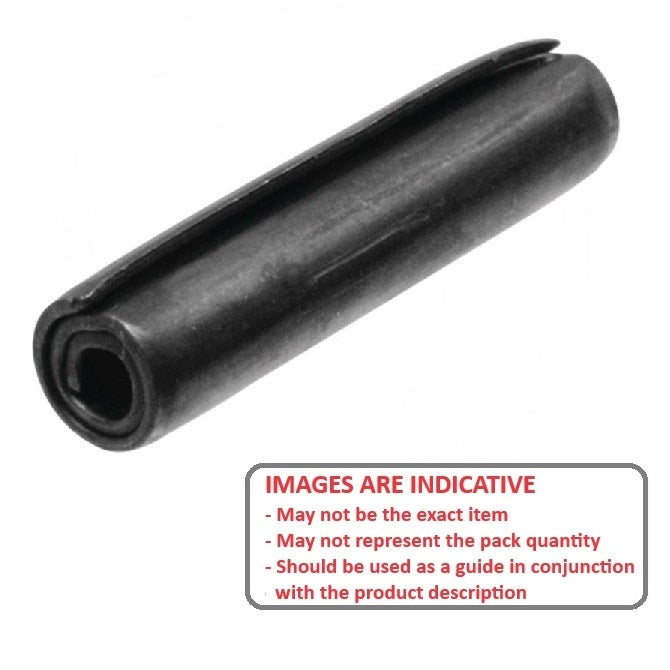

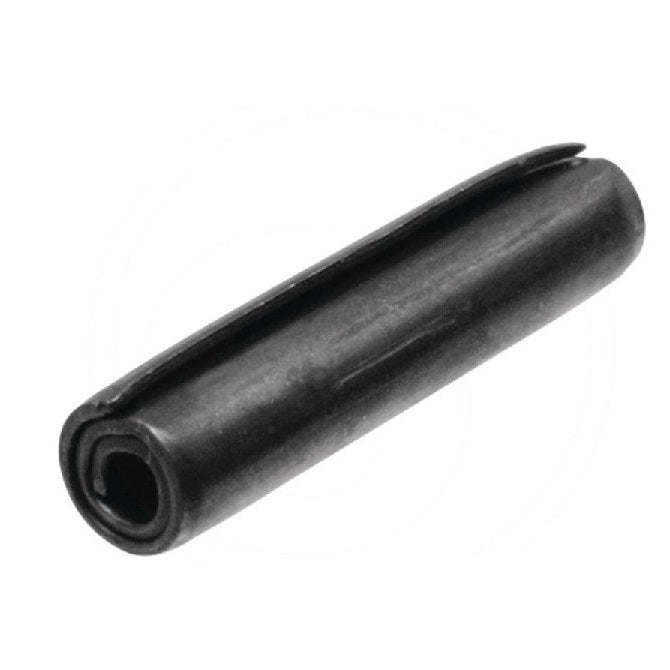

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 2.50 mm
- Length
12.00
mm
+/- 0.50
(Equiv. 0.472 in.) - Drill Size 2.50 - 2.60 mm
- Loose Diameter 2.65 - 2.78 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 4 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91612A255
- SEP2512
- SEP2.5-12
