NT022C-HXT-NY - Datasheet
MBA
Category Information

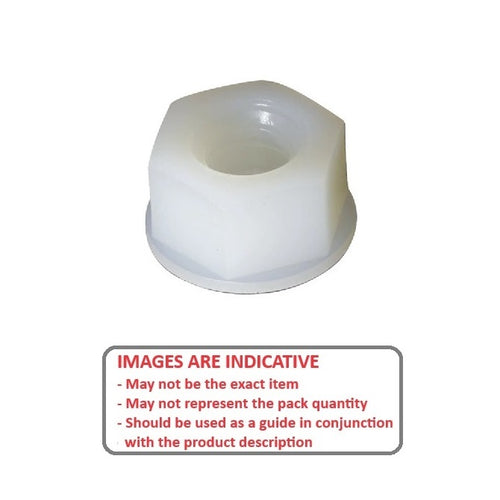

Nuts - Hexagonal - Full - Nylon - Self TappingSelf Tapping Nylon Full Hexagonal Nuts. Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- An expanded range may be available on special order. Please enquire.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 2-56 UNC (2.18mm)

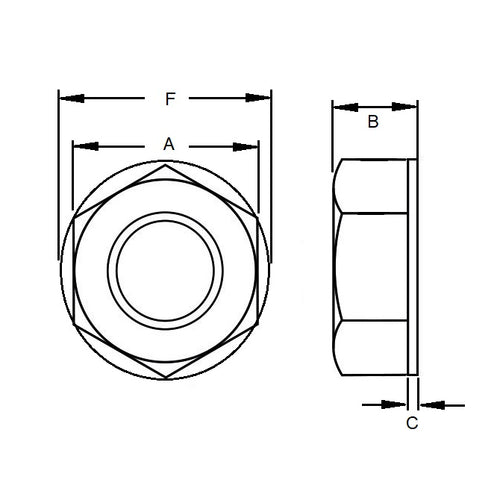

- Thickness (H)
1.59
mm
(Equiv. 0.063 in.) - Across Flats (A/F)
4.57
mm
(Equiv. 0.18 in.) - Type Self Tapping Hex Nut
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- A9M64-0256
- A9M640256
