SK022C-010-PH-CZ - Datasheet
MBA
Category Information

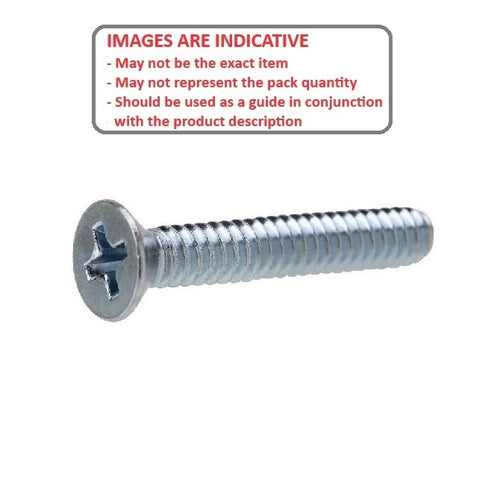

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 2-56 UNC (2.18mm)
- Overall Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material Zinc Plated
- Max Head Diameter (A) 4.11 mm
- Max Head Height 1.6 mm
- Type Countersunk / Philips
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90273A065
- Hitech MSCPZP25638
