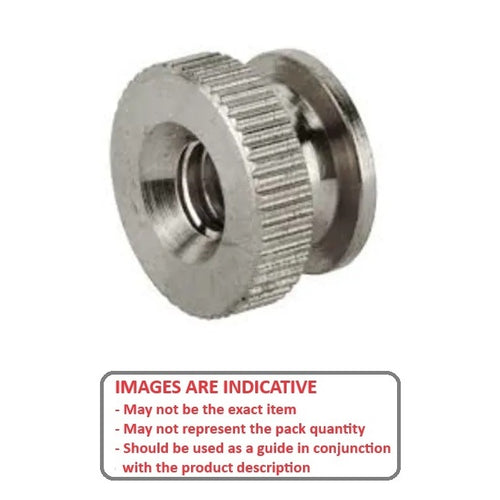

NT022C-THC-S3 - Datasheet

MBA

Product Data

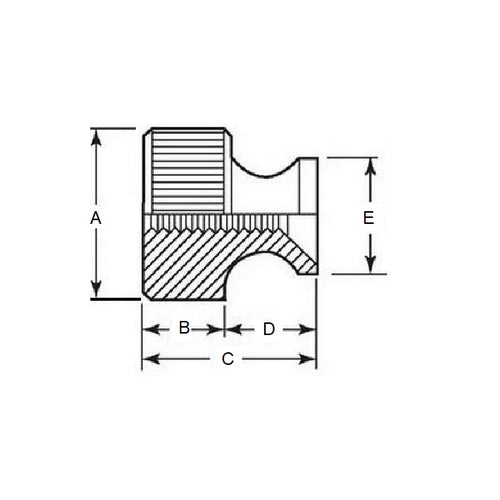

• Thread Size : 2-56 UNC (2.18mm)
• Overall Length (C) 6.4 mm
  (Equiv. 0.252 in.)
• Head Width (B) 3.18 mm
  (Equiv. 0.125 in.)
• Head Diameter (A) 6.35 mm
• Collar Diameter (E) 4.76 mm
• Collar Height (D) 3.18 mm
• Material Stainless Steel 303 (Similar to A2, 304, 18-8)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 95150A110
• AJ743
• AJ-743
