Miniature Bearings Australia
SK022C-005-SL-N - Datasheet
MBA
Category Information

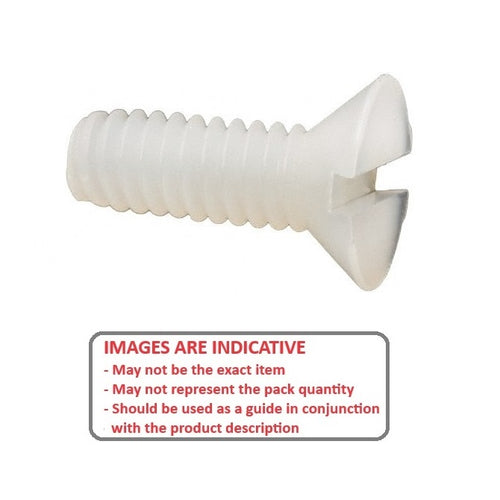

Screws - Countersunk - Slotted - NylonNylon Slotted Countersunk Screws. Flat Head Countersunk UNC and UNF.
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 2-56 UNC (2.18mm)
- Overall Length (L)
4.8
mm
(Equiv. 0.189 in.) - Material Nylon (Zytel 101)
- Max Head Diameter 4.11 mm
- Max Head Height 1.30 mm
- Type Countersunk / Slotted
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92929A108
- Small Parts MN-256-3F
- MN2563F
- A9M50-F025603
- A9M50F025603
- A 9M50-F025603
