SK022C-005-PH-S4 - Datasheet
Brighton Best
Category Information

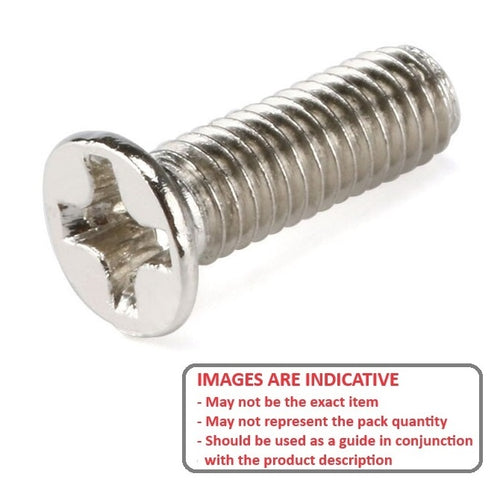

Screws - Countersunk - Phillips - 304 Stainless304 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 2-56 UNC (2.18mm)
- Overall Length (L)
4.8
mm
(Equiv. 0.189 in.) - Material 304 Stainless
- Max Head Diameter (A) 4.11 mm
- Max Head Height 1.30 mm
- Type Countersunk / Philips
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 771066
- 91771A076
- Small Parts MFX-256-3
- MFX2563
