Miniature Bearings Australia
SK022C-013-SL-BR - Datasheet
MBA
Category Information

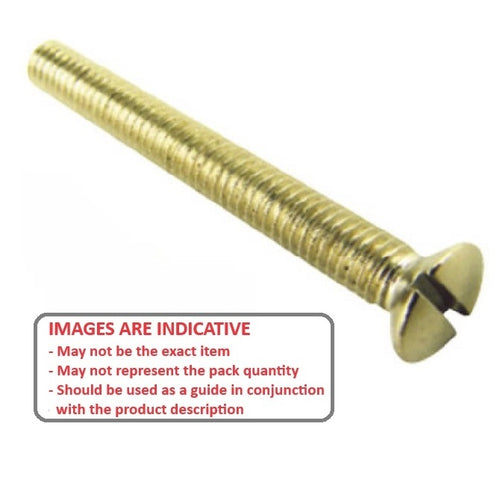

Screws - Countersunk - Slotted - BrassBrass Slotted Countersunk Screws. Flat Head Countersunk METRIC and BSW
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 2-56 UNC (2.18mm)
- Overall Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material Brass
- Max Head Diameter 4.11 mm
- Max Head Height 1.30 mm
- Type Countersunk / Slotted
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92451A081
