RCL-024-064-Z - Datasheet
MBA
Category Information

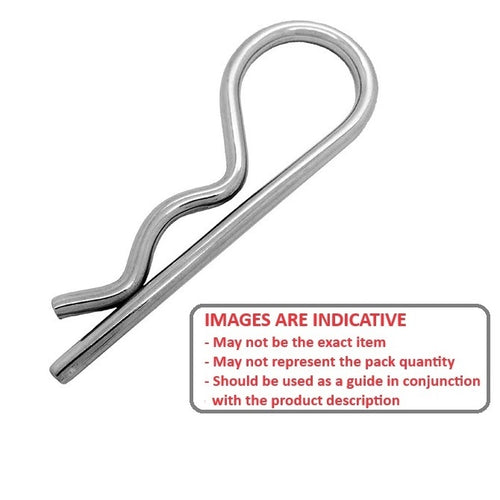

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

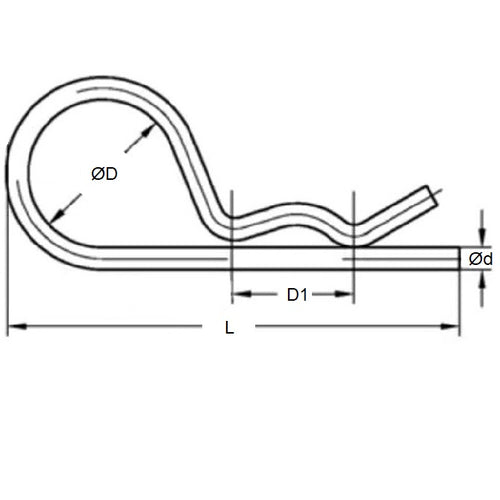

- Wire Thickness (d) : 2.40 mm
- Length (L) 64.0 mm
- Material Spring Wire, Oil-Tempered
- Drill Hole Size 2.78 mm
- Approx.Inside Eye (D) 9.50 to 16.00 mm
- Shaft Size Range 9.53 to 19.05 mm
- Approx. Bridge Length (D1) 22 mm
- Material Spring Wire or Oil-Tempered Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A066
- Huyett® BP-214
- A9Q34-14
- A9Q3414
