RCL-024-059-S4 - Datasheet
MBA
Category Information

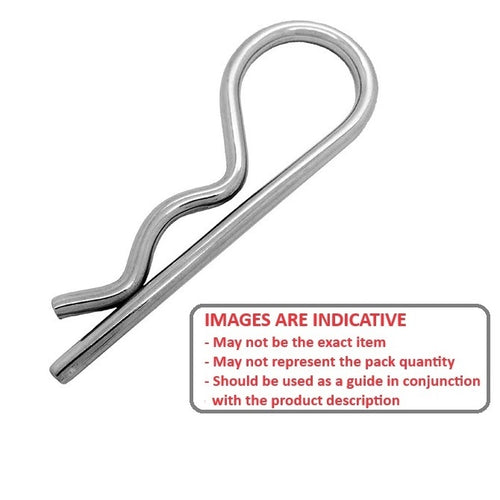

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

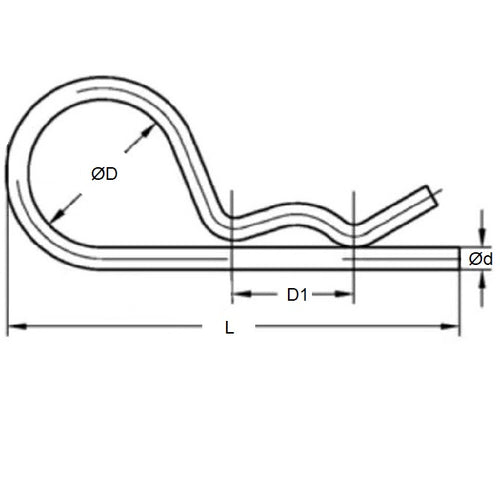

- Wire Thickness (d) : 2.40 mm
- Length (L) 59.0 mm
- Material 304 Stainless Steel
- Drill Hole Size 2.78 mm
- Approx.Inside Eye (D) 9.50 to 16.00 mm
- Shaft Size Range 6.35 to 15.88 mm
- Approx. Bridge Length (D1) 20 mm
- Material Stainless Steel
