RP024-0064-Z - Datasheet
Brighton Best
Category Information

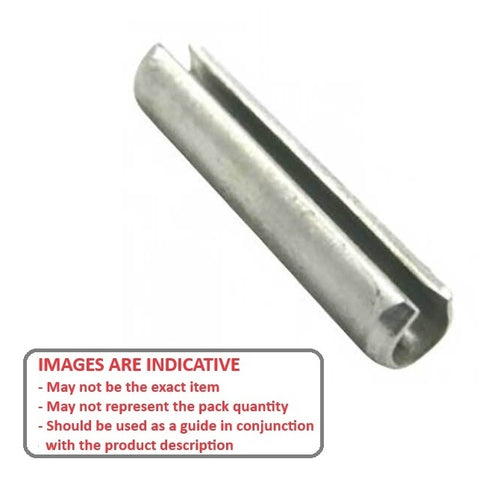

Pins - Roll - Zinc PlatedZinc Plated Roll Pins. Zinc plated spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

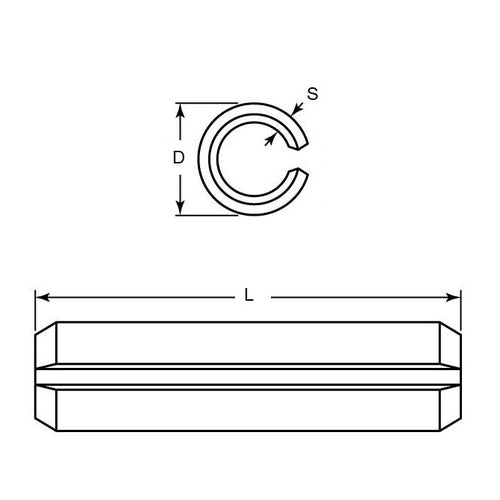

- Nominal Diameter (D) : 2.38 mm
- Length (L) 6.40 mm
- Free Diameter 2.62 mm
- Thickness (S) 0.56 mm
- Chamfer Length (cL) 0.20-0.97 mm
- Chamfer Diameter (cD) 2.3 mm
- Standard DIN1481 / ISO8752
- Quantity Per Box 1000
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90692A139
- NoCor® SP-094-0252
- Brighton Best® V80041
- SP0940252
