K-0238-0238-1588B-C - Datasheet
ExaktKey
Category Information

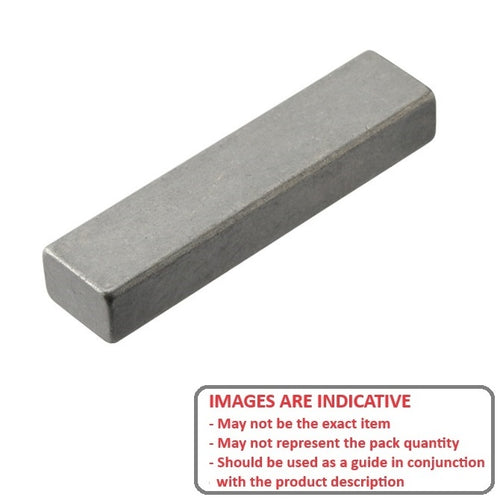

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
2.38
mm
+ 0 / - 0.051
(Equiv. 0.094 in.) - Height (h)
2.38
mm
+ 0 / - 0.051
(Equiv. 0.094 in.) - Length (L)
15.88
mm
+/ - 0.25
(Equiv. 0.625 in.) - Finish Plain
- Tolerance Type Standard

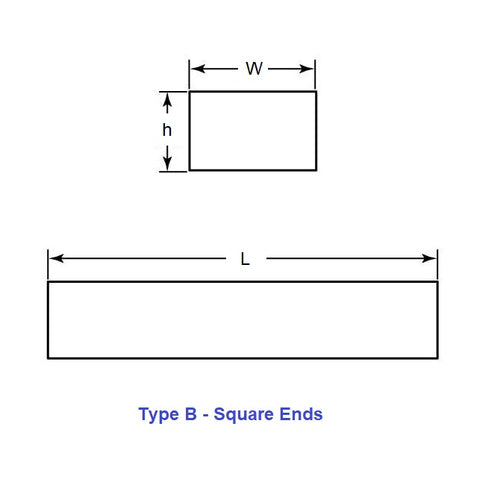

- End Type B (Square Ends)
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- NoCor 3000930093-0625
- 30009300930625
