FMR6-238-AF12-ECO - Datasheet
ECO
Category Information

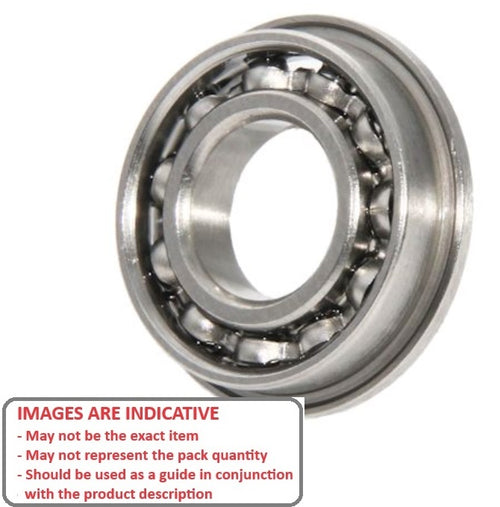

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

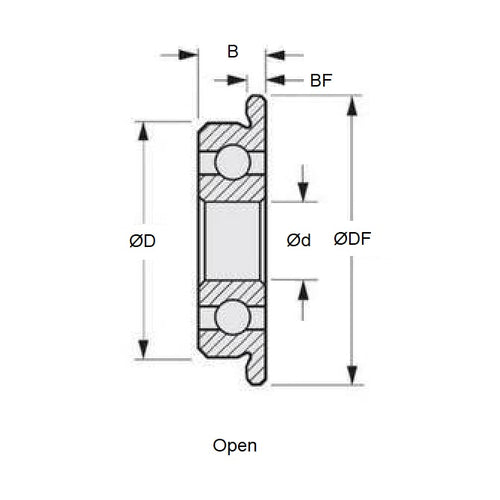

- ID (d)
:
2.381
mm
(Equiv. 0.094 in.) - OD (D)
6.000
mm
(Equiv. 0.236 in.) - Width (B)
2.500
mm
(Equiv. 0.098 in.) - Flange Diameter (DF) 7.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Oil
- Lubrication Name Standard Unspecified
- Basic Part FMR6-238
- Limiting Speed 69419.3
- Cage Type Crown
- Static Load Rating KGf 5.2
- Dynamic Load Rating KGf 14.2
- Radii Undefined mm
- Inner Shoulder (UI) Undefinedmm
- Outer Shoulder (UO) Undefined mm
- Number of Balls Undefined
- Clearance ECO (5 to 20)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
