DP024-006-CH-1 - Datasheet
NoCor
Category Information

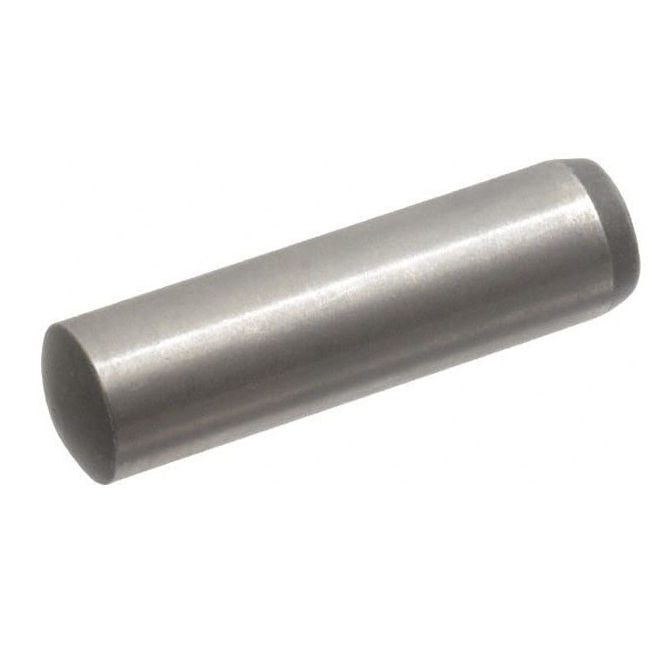

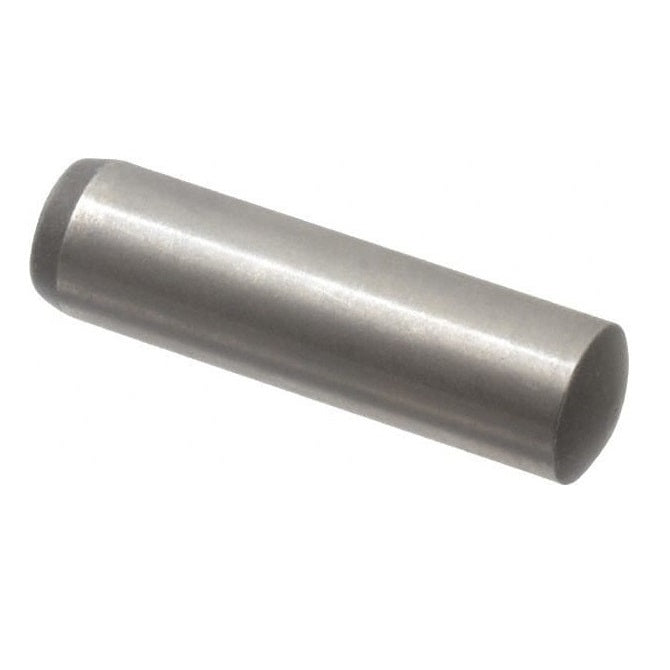

Pins - Dowel - Standard - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN6325, ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
2.381
mm
+ 0.002 / + 0.008
(Equiv. 0.094 in.) - Length (L)
6.35
mm
+/- 0.254
(Equiv. 0.25 in.) - Approx. Overall Length
6.35
mm
+/ - 0.254
(Equiv. 0.25 in.) - Type 1 (Chamfer One End)
- Standard Based on DIN 6325
- Material Steel Alloy - Heat Treated and Ground Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 241046
- NoCor DOW-094-0250
- DOW0940250
- A9Q32-0308
- A9Q320308
