TH-034 - Datasheet

MBA

Category Information

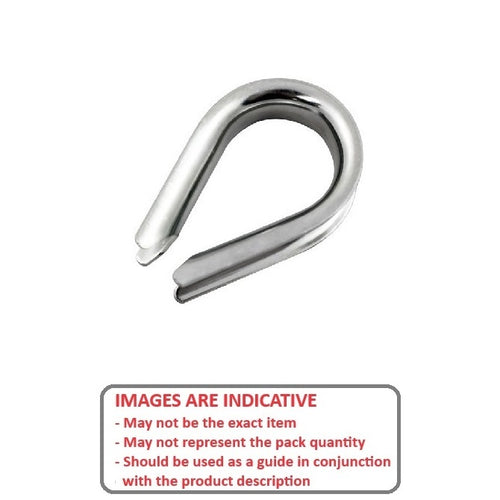

Cable Attachments - Thimbles - Stainless

Stainless Thimbles Cable Attachments. 316 Stainless Steel. Use with synchromesh cable or standard miniature cable. Use with synchromesh or standard miniature cable

  • U-shaped metal insert used to reinforce the eye (loop) of a wire rope or cable, preventing damage from abrasion and friction.
  • Protects the cable by maintaining its shape under tension, ensuring a stronger and more durable connection when secured with clips or ferrules.
  • Made from durable materials like steel or stainless steel and are common in industrial, marine, and rigging applications.
  • Thimbles provide loop support at higher loads and protect cables from wear when motion is present.
  • Some thimbles may have open or uneven ends.

Product Data

  • Suitable cable diameter : 2.38 - 3.18 mm
    (Equiv. 0.094 in.)

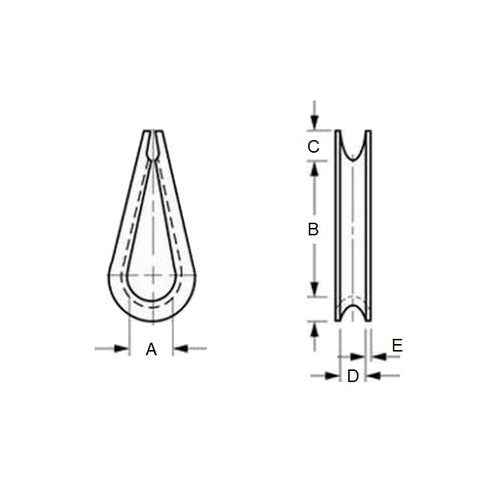

  • OAL (B+C+F) 25.400 mm
    (Equiv. 1 in.)
  • Inside Width (A) 8.611 mm
    (Equiv. 0.339 in.)
  • D Dimension 3.572 mm
  • E Dimension 0.813 mm
  • F Dimension 1.984 mm
  • Suits Synchromesh Cable SM-CBL-03.40x06.35
  • B Dimension 17.859
  • C Dimension 5.556
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • CBL515
    • CBL-515
    • A6C9MT094
