RPO-024-024-C - Datasheet
MBA
Category Information

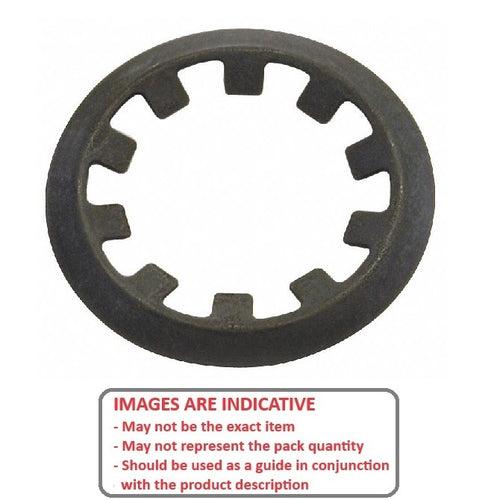

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data
- Min shaft size (s1) : 2.36 mm
- Max Shaft Size (s2) 2.41 mm
- Outside diameter (D1) 6.35 mm
- Min shaft extension (n1) 1.02 mm
- Material Thickness (t) 1.02 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5105-009
- IRR 6100-009
- Small Parts RSE-1-1-2
- Huyett® TY-009
- NoCor® TY-009
- Rotor Clip® TY-009
- RSE112
- TY009
- 6100009
- 5105009
