W0022-T-006-006-WC-S2 - Datasheet

MBA

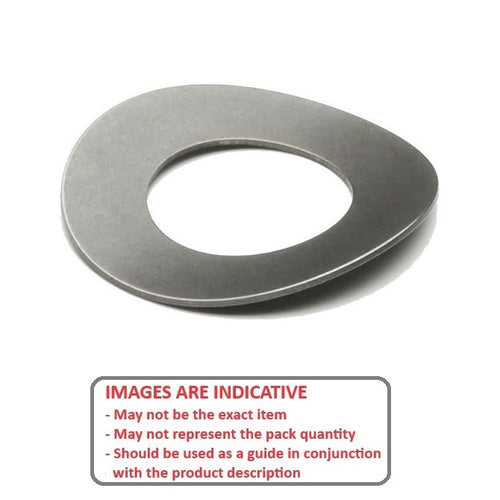

Stainless Steel Curved Spring Washers. Stainless steel, curved selection.

Spring washers are available in many different materials and types, including curved and waved series.
They are designed to allow it to act like a spring, providing a small amount of preload, tension, or pressure to an assembly, helping to keep components securely fastened and minimizing vibration
An expanded range may be available on special order. Please enquire.

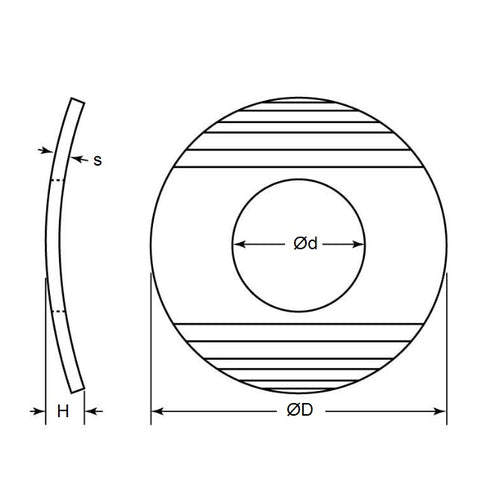

ID and OD are long axis dimensions

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Nominal Inside Diameter (B) : 2.18 mm _{+ 0.250 / - 0.000}
(Equiv. 0.086 in.)
Nominal Outside Diameter (A) 5.46 mm _{+ 0.000 / - 0.38}
(Equiv. 0.215 in.)
Nom. Height (C) 0.64 mm
(Equiv. 0.025 in.)
Thickness (D) 0.14 mm
Info Made In USA
Type Curved
Nominal Screw Size M2, 2-56, 2-64
Actual ID (Ref) 2.5 mm
Material Stainless Steel 302/304 (Similar to A2, 18-8)

Country of Origin: US
