SCT0218-010-P-PH-S4 - Datasheet
Brighton Best
Category Information

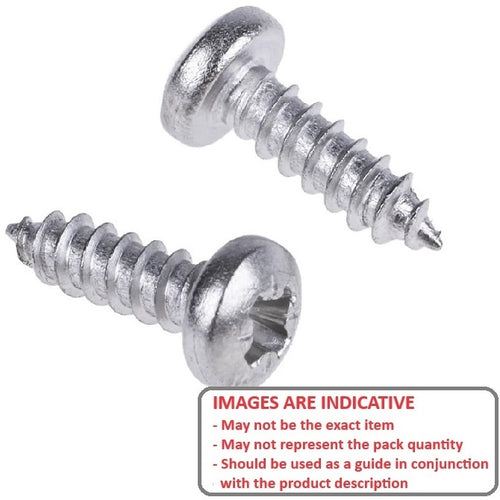

Screws - Self Tapping - Pan Head - 302 - 304 Stainless304 Stainless 302 Pan Head Self Tapping Screws. Type AB Steel Self Tapping Screws.

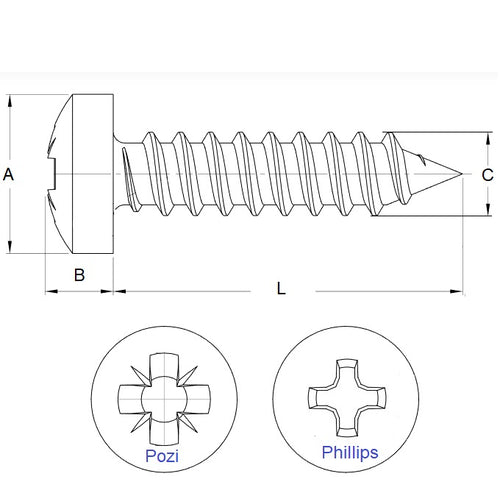

- Length is from the tip of the screw to the base of the head. Ie, does not include the head.
Product Data
- Approx Diameter : 2.18mm (2 Gauge) mm
- Thread Length (L) 9.50 mm
- Gauge 2
- Type Pan / Philips
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best® 678032
- 92470A097
