Miniature Bearings Australia
SCT0218-013-P-PH-S2 - Datasheet
MBA
Category Information

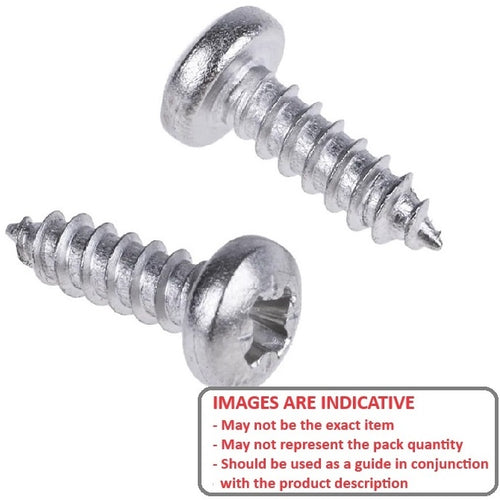

Screws - Self Tapping - Pan Head - 302 - 304 Stainless304 Stainless 302 Pan Head Self Tapping Screws. Type AB Steel Self Tapping Screws.

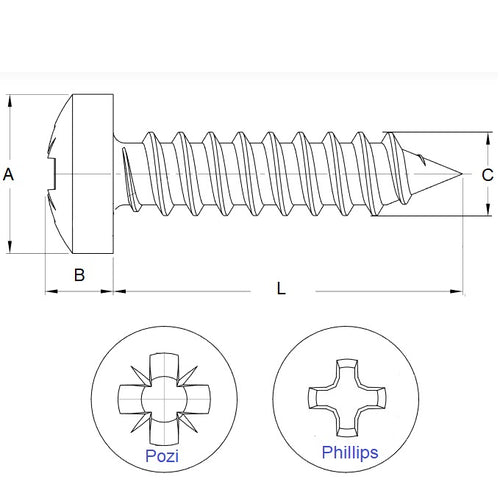

- Length is from the tip of the screw to the base of the head. Ie, does not include the head.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Approx Diameter : 2.18mm (2 Gauge) mm
- Thread Length (L) 12.7 mm
- Gauge 2
- Type Pan / Philips
- Material Stainless Steel 302/304 (Similar to A2 or 18-8)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92470A098
- MicroFast® SMPPS0208
