RCL-020-057-Z - Datasheet
MBA
Category Information

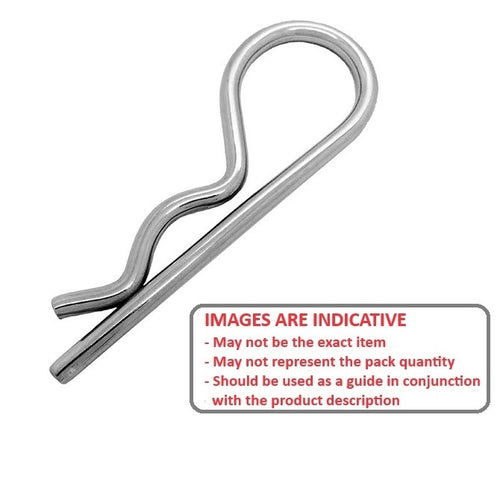

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

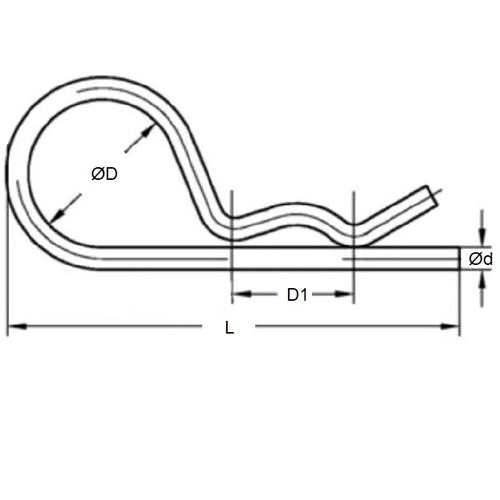

- Wire Thickness (d) : 2.00 mm
- Length (L) 57.0 mm
- Material Zinc Plated
- Drill Hole Size 2.50 mm
- Approx.Inside Eye (D) 9.00 to 11.00 mm
- Shaft Size Range 9.00 to 14.00 mm
- Approx. Bridge Length (D1) 19 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98350A910
- Huyett® BPM-020-050
- NoCor® BPM-020-050
- RPS2-50
- RPS250
- BPM020050
