PSP-010-010-S2 - Datasheet
MBA
Category Information

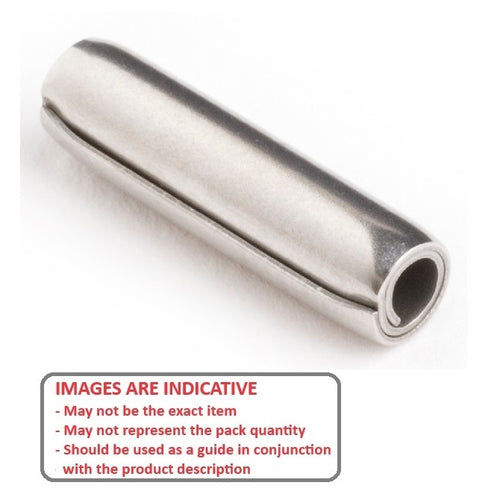

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter : 1.00 mm
- Length
10.00
mm
+/- 0.50
(Equiv. 0.394 in.) - Drill Size 1.00 - 1.04 mm
- Loose Diameter 1.05 - 1.15 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91612A107
- EP110
- EP1-10
