Miniature Bearings Australia
CCE-01900-C - Datasheet
MBA
Category Information

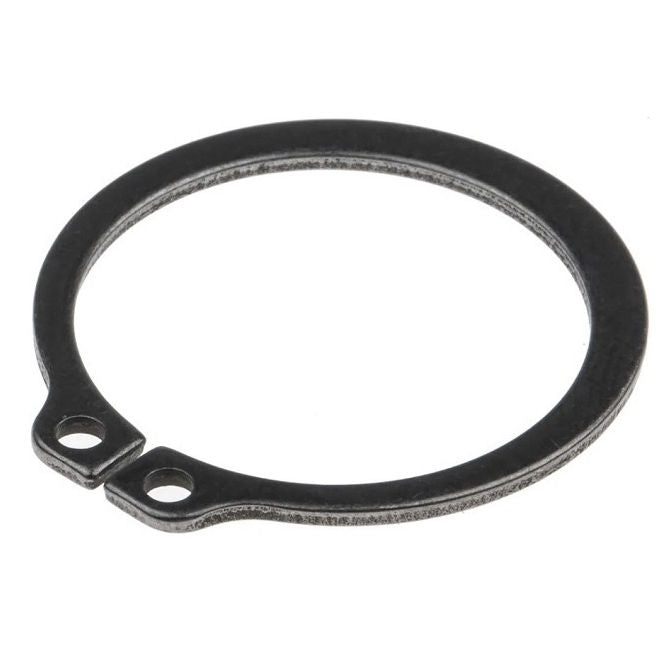

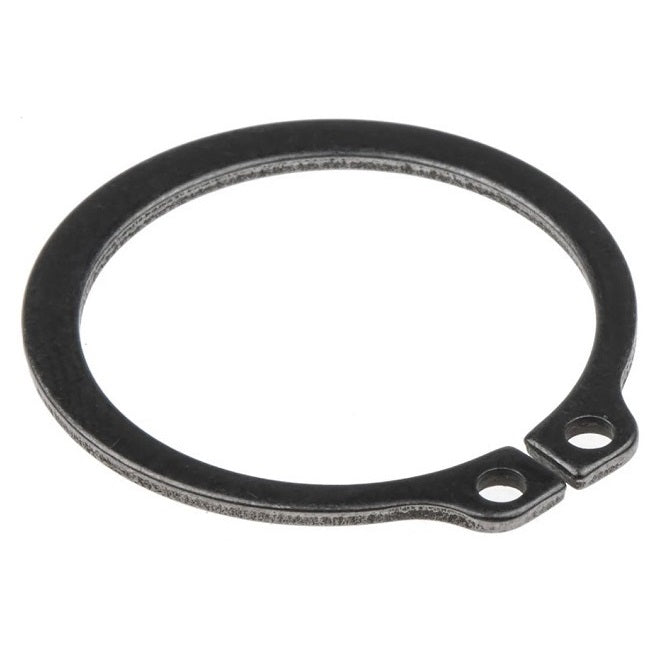

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 19.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
18.00
mm
+ 0.00 / - 0.11
(Equiv. 0.709 in.) - Approx. Loose Circlip ID (A) 17.50 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 27.20 mm
- Clearance in Groove (C1) 25.80 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-019
- 98541A430
- Seeger® A-019
- Seeger® A19
- Seeger® A19-BLS
- Seeger® A19X1.2
- Bossard® BN818-019
- Waldes® D1400-019
- Huyett® DSH-019
- NoCor® DSH-019
- Rotor Clip® DSH-019
- Seeger® NZT.A19
- BN818019
- A019
- A19BLS
- D1400019
- D1400-0190
- D14000190
- MD0471MQB019
- 471019
- DSH019
