GBA-9RS - Datasheet
MBA
Category Information

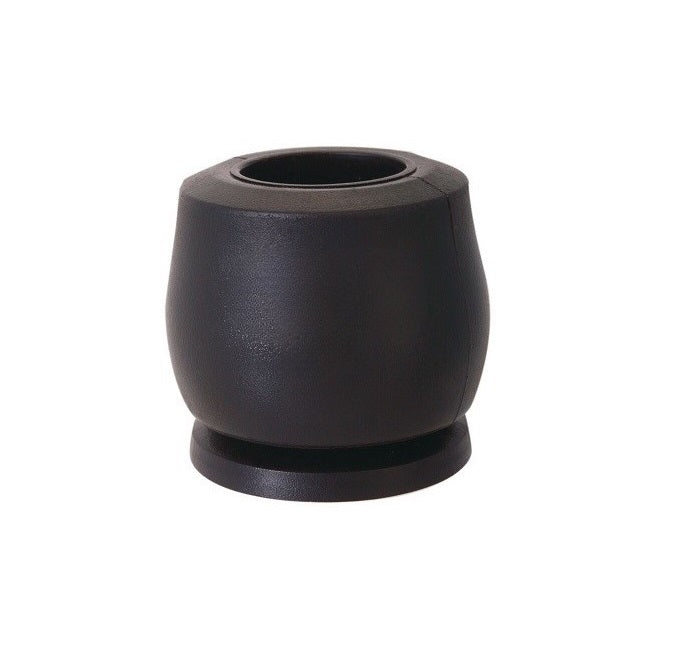

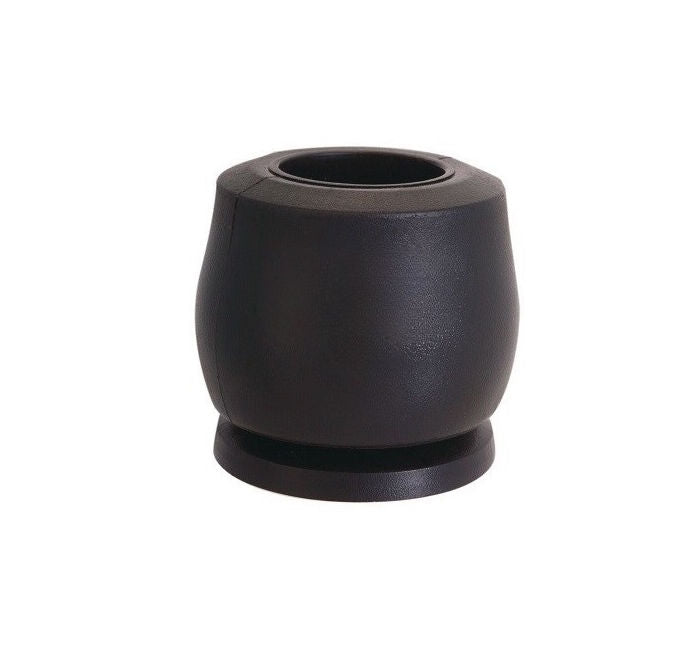

Bumpers - Elastomer - Axial - High Energy - Compact - Short StrokeShort Stroke Compact High Energy Axial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 times greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 19700 N
- Free Height (A)
47.2
mm
+/- 1.5
(Equiv. 1.858 in.) - Free Bulge
52.8
mm
+/ - 1.6
(Equiv. 2.079 in.) - Solid Height (B) 25.1 mm
- Base Diameter 46.7 mm +/- 0.8
- Wrench Opening (G) 25.9 mm +/- 0.8
- Mounting Hole (F) 13.7 mm
- Bulge at Solid Height 68.5 mm
- Material Elastomer
