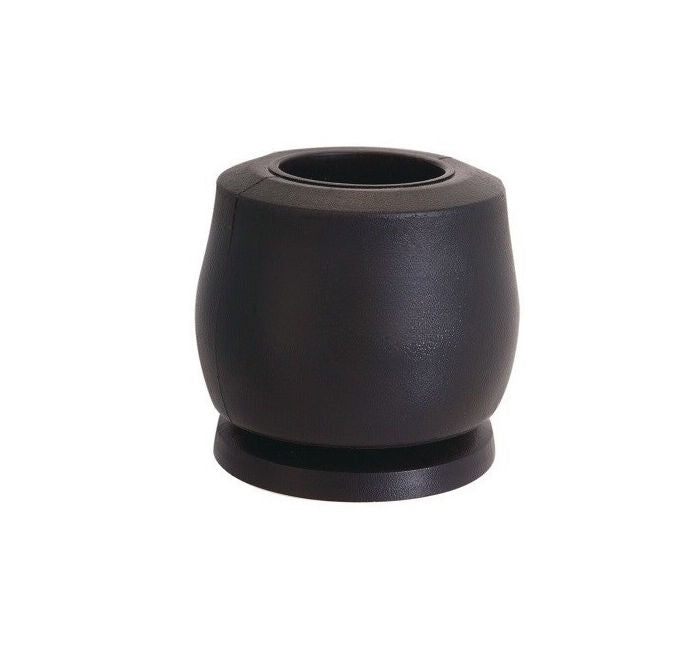

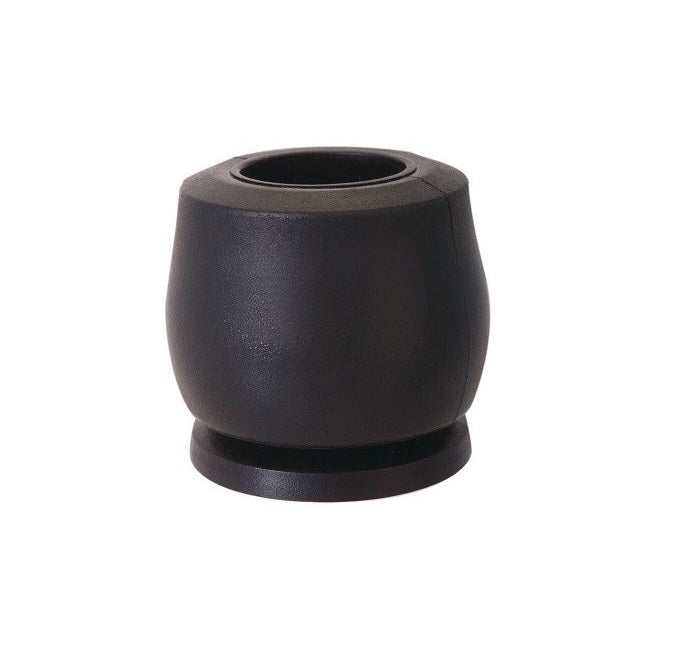

GBA-20RS - Datasheet
MBA
Category Information
Bumpers - Elastomer - Axial - High Energy - Compact - Short StrokeShort Stroke Compact High Energy Axial Elastomer Bumpers. Elastomer bumpers provide excellent resistance to chemicals and humidity. 20 times greater durability than urethane.
- 10 times greater durability than rubber and 500 times greater than steel coiled springs. Also see Mounts - Buffers
- Maintains excellent resilience at extreme temperatures and remains flexible with no material degradation between -62 oC and +148 Deg C (-80 Deg F and +300 Deg F)
- Mounting screws not included.
Product Data
- Peak Force : 84500 N
- Free Height (A)
101.0
mm
+/- 3.0
(Equiv. 3.976 in.) - Free Bulge
115.8
mm
+/ - 3.6
(Equiv. 4.559 in.) - Solid Height (B) 55.9 mm
- Base Diameter 99.8 mm +/- 1.5
- Wrench Opening (G) 56.9 mm +/- 0.8
- Mounting Hole (F) 20.3 mm
- Bulge at Solid Height 146.0 mm
- Material Elastomer
