AU-970RS - Datasheet
MBA
Category Information
Bumpers - Cylindrical CounterboredCylindrical Counterbored Bumpers. With steel core and washer moulded inside. Counterbored hole to accept a socket head cap screw.
- Rubber bumper designed with a large, shallow hole on one side, allowing a fastener's head to be sunk below the surface for a flush or protected fit.
- Commonly used for impact protection on machinery, loading docks, and equipment, as well as for vibration dampening and to prevent sliding on surfaces.
- Also see Mounts - Buffers.
Product Data

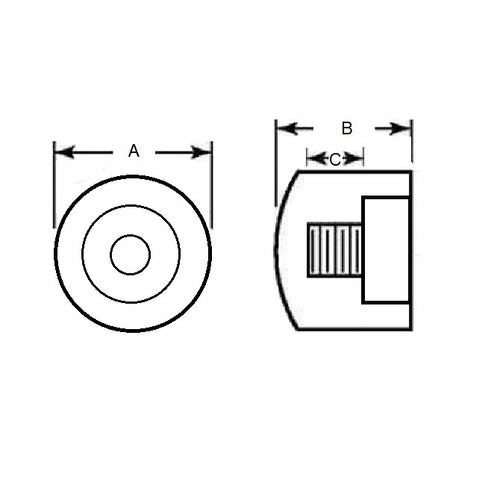

- Diameter (A)
:
19.050
mm
(Equiv. 0.75 in.) - Height (B)
19.050
mm
(Equiv. 0.75 in.) - Hole Diameter
6.35
mm
(Equiv. 0.25 in.) - End Flat
- Durometer 95A
- Colour Red
- Material Polyurethane 95A
