4R-0191-0300-BR - Datasheet
ExaktKey
Category Information

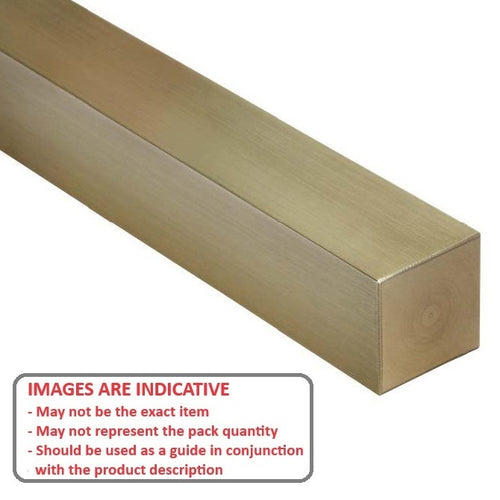

Keysteel Lengths - Square - BrassBrass Square Keysteel Lengths. Brass key steel. Square brass bar that can be used for keysteel or for small brass construction projects.
- An expanded range may be available on special order. Please enquire.
Product Data

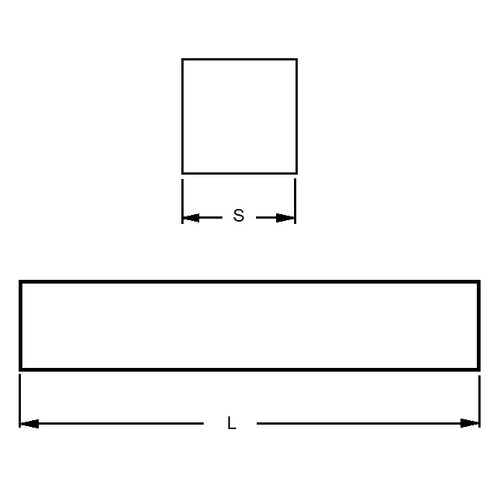

- Width (s1)
:
19.050
mm
+/- 0.102
(Equiv. 0.75 in.) - Height (s2)
19.050
mm
+/- 0.102
(Equiv. 0.75 in.) - Length (L)
300
mm
+/- 3.2
(Equiv. 11.811 in.) - Material Brass
Product Compliance and Data
Additional Resources
Cross References
- NoCor 0607500750-12
- 98500A226
- 060750075012
