GHK1905-1905-152 - Datasheet

ExaktKey

Category Information

Keys - Gib Head - Steel

Steel Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nominal Key Height (H1) : 19.050 mm
  • Width (W) 19.050 mm
  • Length (L) 152.4 mm
  • Approx (B) 12.7
  • Material Cold Finished Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 68471A364
  • Smalley® GHK1905-1905-152
  • Huyett® GIB-0750-6000
  • NoCor® GIB-0750-6000
  • MAK-A-KEY® JMEDG6X34
  • GIB07506000
  • GHK19051905152
View full details

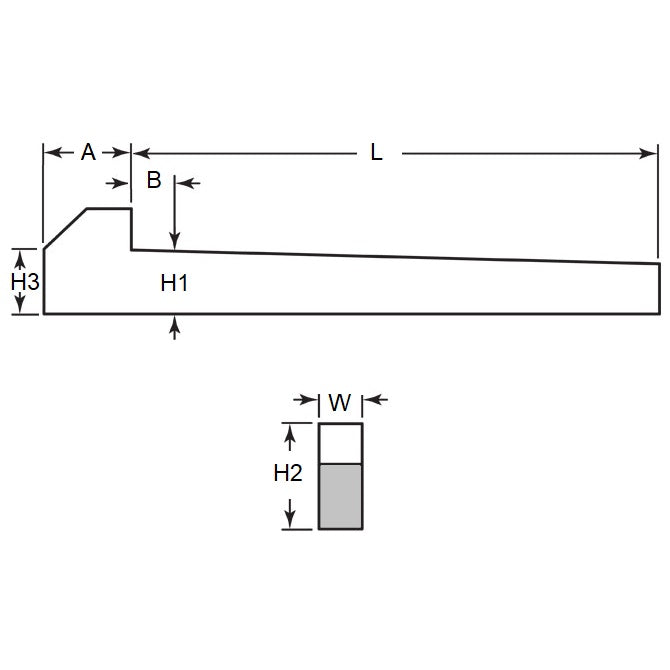

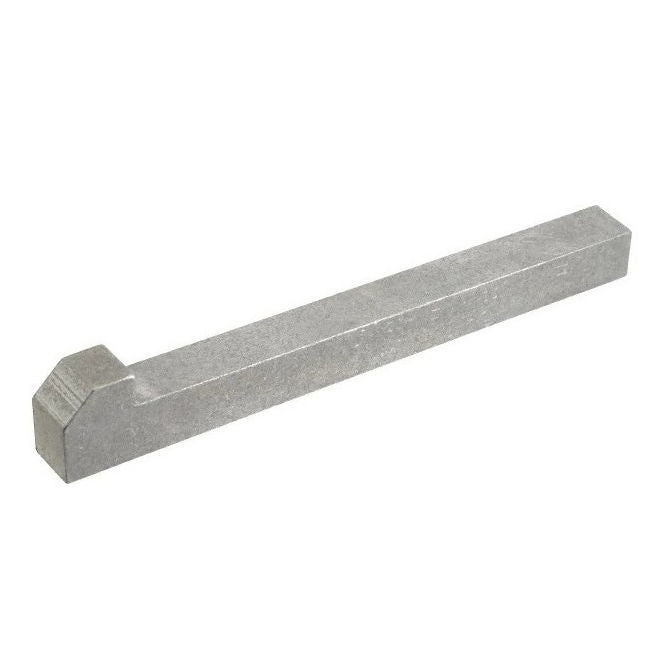

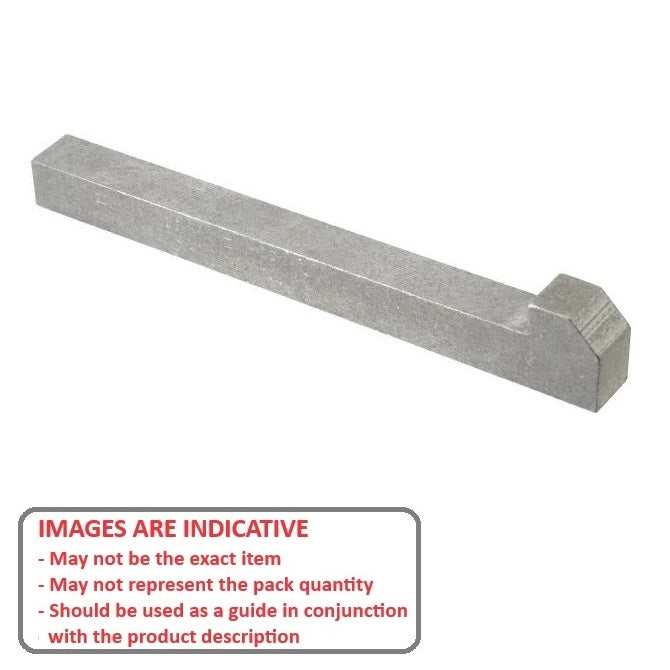

GHK1905-1905-152DiagramGHK1905-1905-152Image
