GHK1905-1905-127-Z - Datasheet
ENQUIRE
Category Information

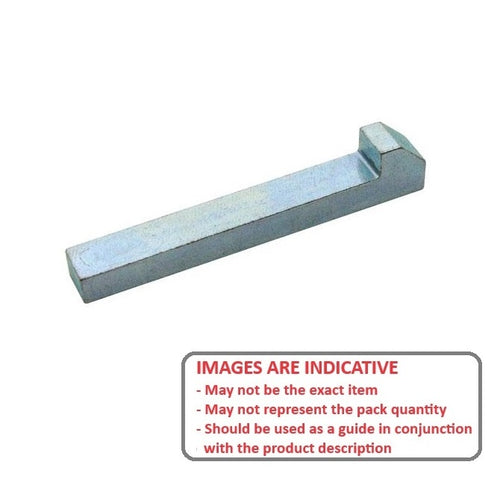

Keys - Gib Head - Zinc PlatedZinc Plated Gib Head Keys. Tapered 3.000 mm per 300 mm (1:100)
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

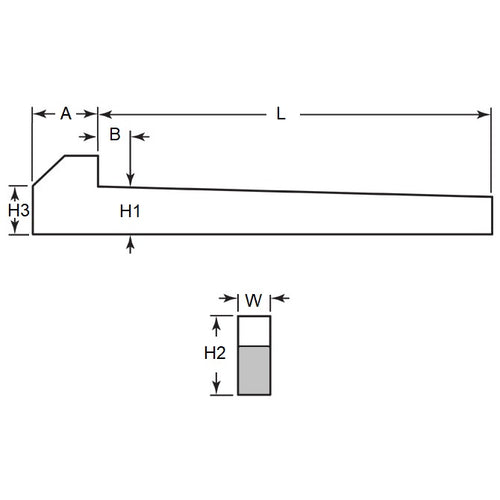

- Nominal Key Height (H1) : 19.050 mm
- Width (W) 19.050 mm
- Length (L) 127.0 mm
- Head Height (h2) Approx. 28.5 mm
- Approx (B) 12.70 mm
- Approx (H3) 19.84 mm
- Taper 1:100
- Standard BS46
- Head Length (Approx) (A) 20.64 mm
- Material Zinc Plated Steel
