REM-191-L-CB - Datasheet
MBA
Category Information

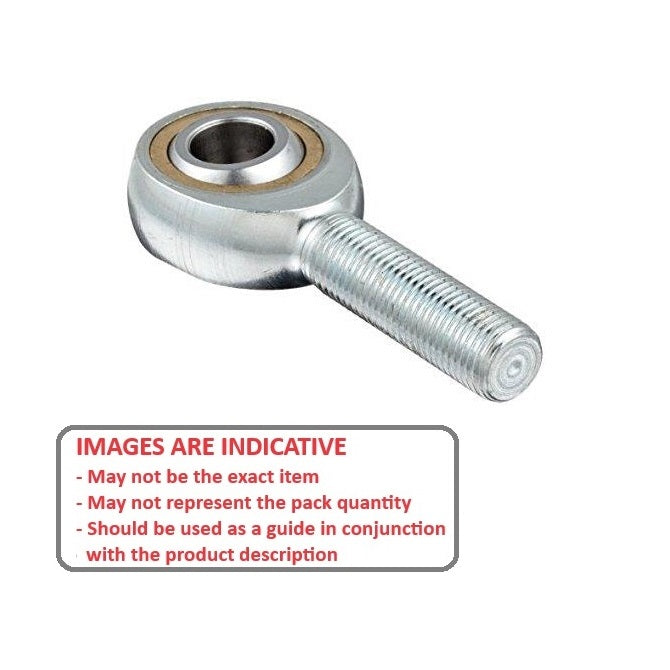

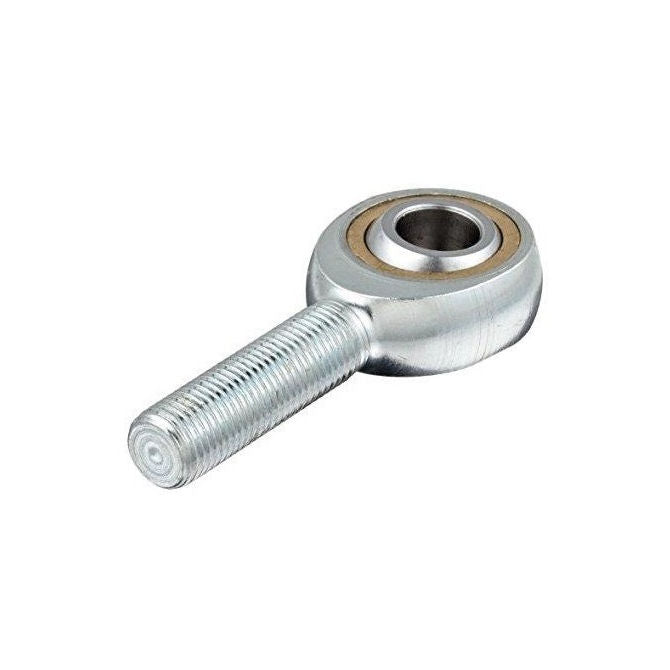

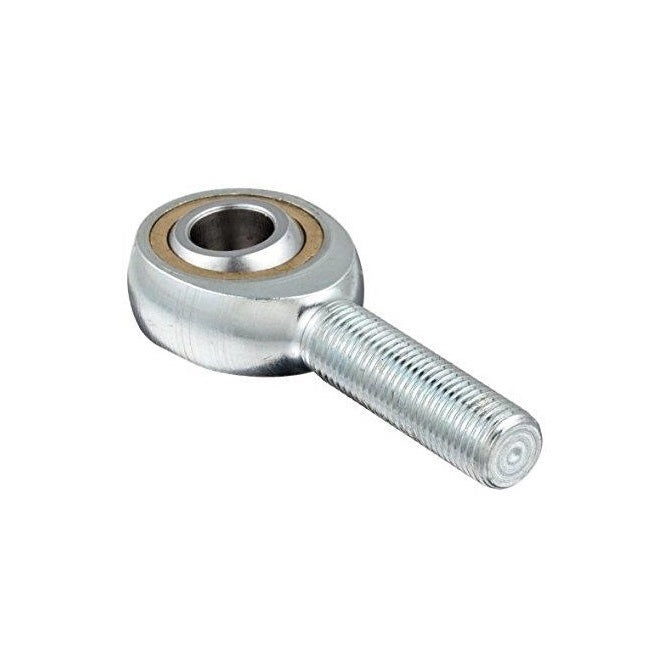

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

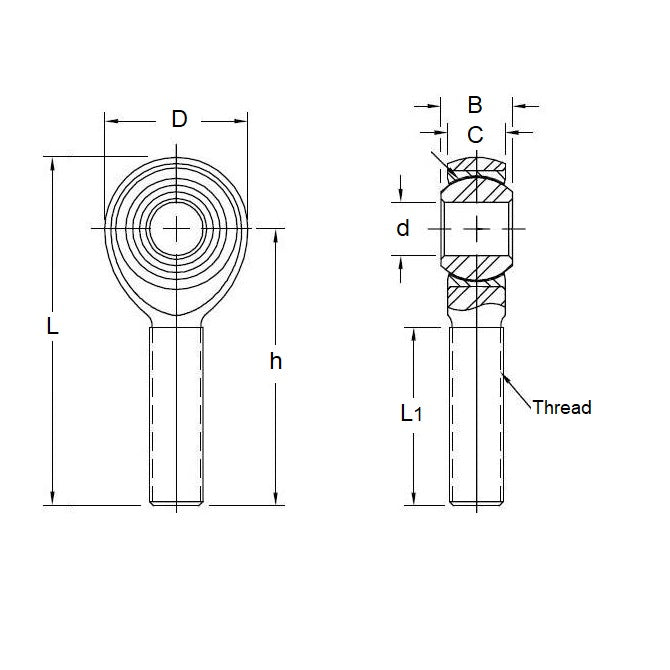

Product Data
- Eye Size (d1) : 19.050 mm
- Overall Length (L) 95.25 mm
- Thread Size 3/4-16 UNF Left
- Min. Thread Length (l2) 44.45 mm
- Head Width (W) 17.45 mm
- Eye Width (W1) 22.23 mm
- Head Diameter (D) 44.45 mm
- Centre Height (l1) 73.03 mm
- Grease Nipple No
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K68-LEFT
- ASAHI® JAMB12L
- KWK KMB12L
- IKO POSB12L
- Nachi® POSB-12L
- NTN® SMI-B12L
- SMIB12L
- 6072K68LEFT
