REF-191-L-CB - Datasheet
MBA
Category Information

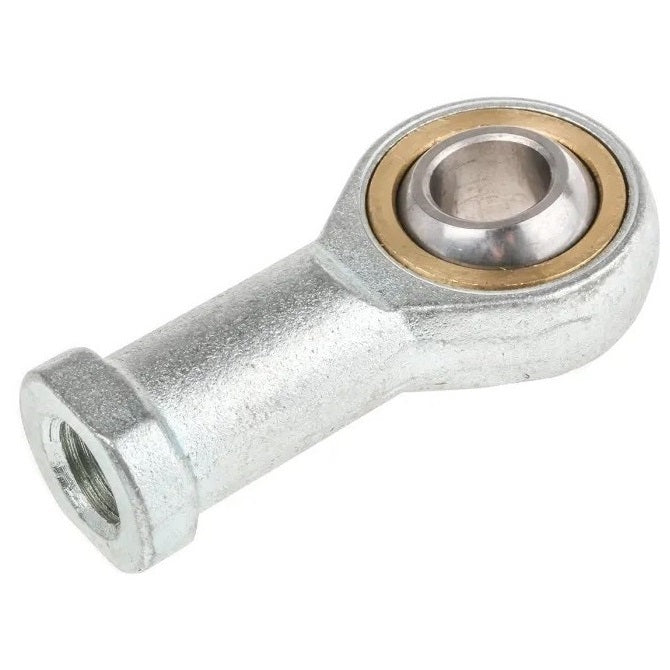

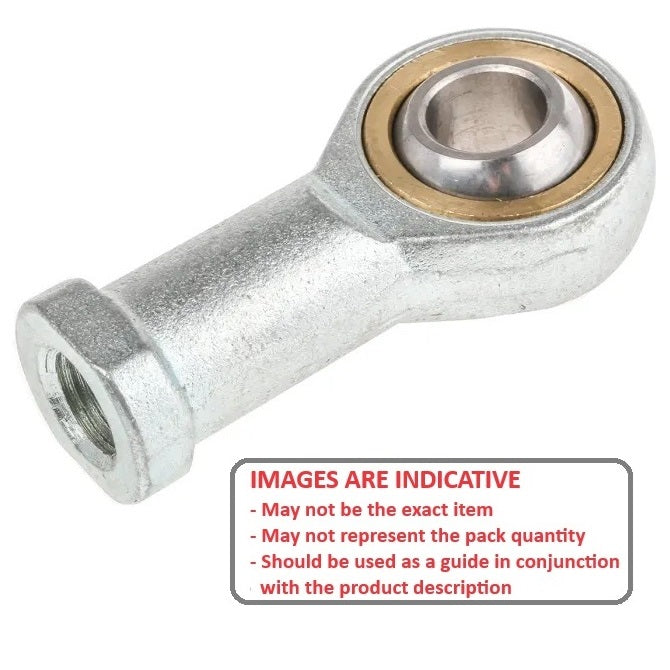

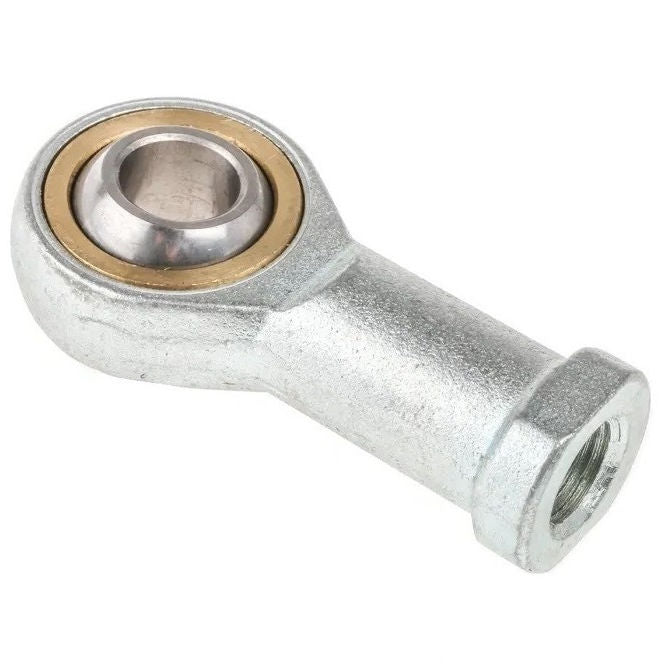

Rod Ends - Female - Steel - Plain - Bronze LinedBronze Lined Plain Steel Female Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

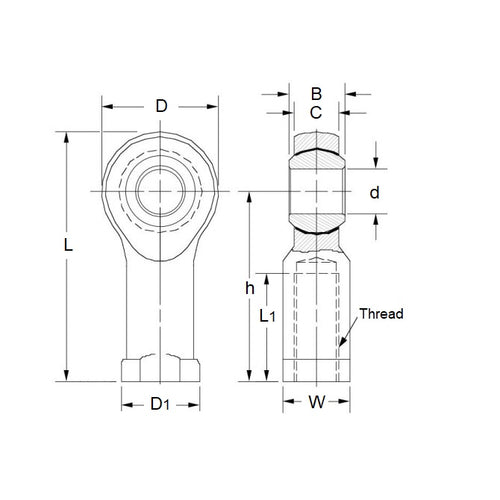

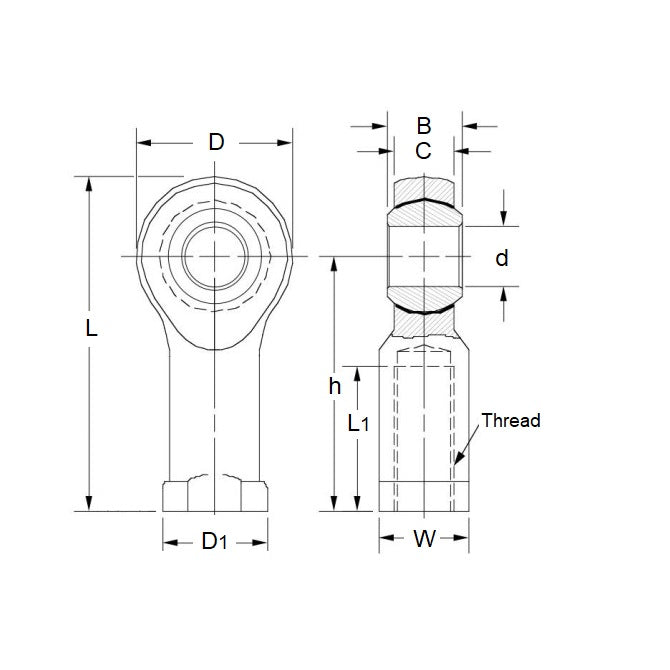

Product Data
- Eye Size : 19.05 mm
- Overall Length 95.25 mm
- Thread Size 3/4-16 UNF Left
- Thread Length 44.45 mm
- Head Width 17.45 mm
- Eye Width 22.22 mm
- Head Diameter 44.45 mm
- Centre Height 73.03 mm
- Grease Nipple No
- Body Width / Flange Width 25.40 / 28.58 mm
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- 6072K58-LEFT
- ASAHI® JAFB12L
- KWK KFB12L
- IKO PHSB12L
- Nachi® PHSB-12L
- NTN® SFI-B12L
- 6072K58LEFT
- SFIB12L
