0R-0191-0914-HCS-T25 - Datasheet
MBA
Category Information

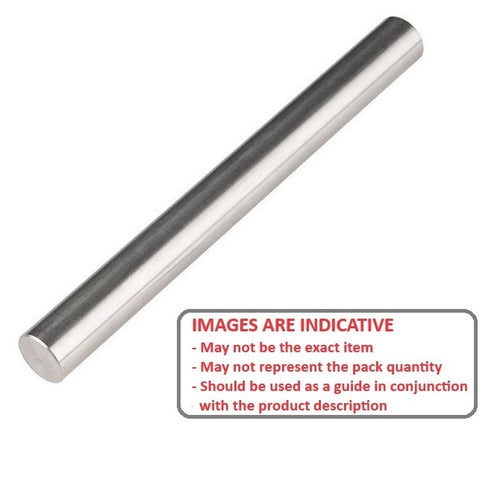

Shafting - Precision Ground - High Carbon SteelHigh Carbon Steel Precision Ground Shafting. Precision ground shafting. AISI C1060. Hardened and recommended for use with precision bearings.
- An expanded range may be available on special order. Please enquire.
- Centreless ground
Product Data

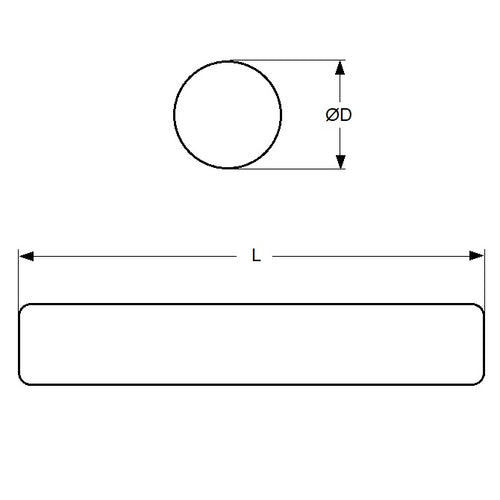

- Diameter (d)
:
19.050
mm
- 0.0127 / - 0.0254
(Equiv. 0.75 in.) - Length (L)
914.4
mm
(Equiv. 36 in.) - Material C1060 Case Hardened Steel
- Surface Finish 0.30 um Microns
- Hardness HRC 60-63
- Ends Finished and Chamfered
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 1555T22-3FT
- Thompson QS3-4Lx36
- TLM1556
- TLM-1556
- 1555T223FT
- QS34Lx36
- S40PH0CHS6072
- S40PH0-CHS6-072
