0R-0191-0305-S440-T30 - Datasheet

MBA

Category Information

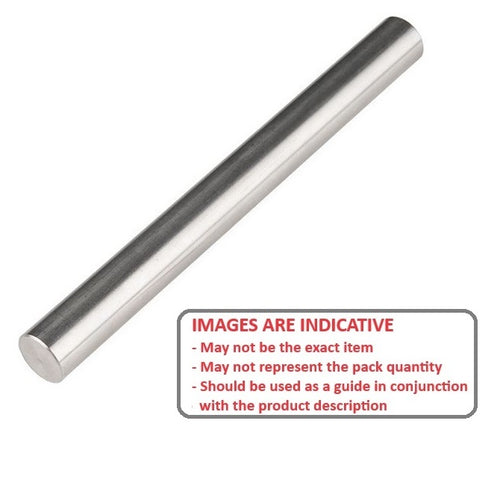

Shafting - Precision Ground - Stainless - 440C Grade Hardened

440C Grade Hardened Stainless Precision Ground Shafting. Precision ground shafting. 440C grade. Hardened and recommended for use with precision bearings.

An expanded range may be available on special order. Please enquire.

Product Data

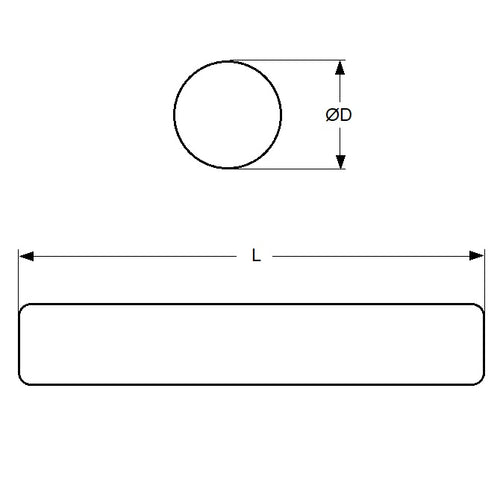

Diameter (d) : 19.050 mm _{- 0.010 / - 0.030}
(Equiv. 0.75 in.)
Length (L) 304.8 mm
(Equiv. 12 in.)
Material 440C Stainless Steel
Surface Finish 0.30 um Microns
Hardness 60-65 Rockwell C
Ends Finished and Chamfered
Material Stainless Steel AISI 440C Hardened

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Drill Rod

Measuring Small Parts
Metalworking Resource Guide

Cross References

6253K62
Thompson QS3-4LSSx12
TLM1626
TLM-1626
QS34LSSx12
