SLQ-1905-2896-10160 - Datasheet
MBA
Category Information

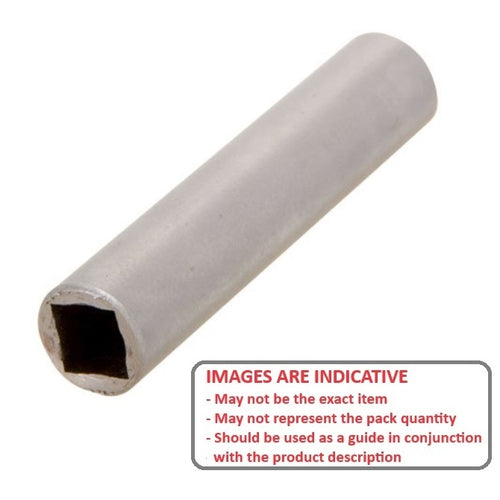

Sleeves - Square Hole - Plain - Carbon SteelCarbon Steel Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Round OD with with a uniform square hole all the way through.
Product Data

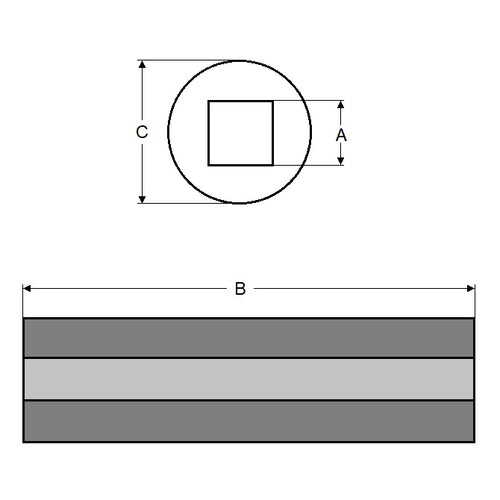

- Nominal Square Size
:
19.050
mm
+/- 0.0254
(Equiv. 0.75 in.) - Outside Diameter (C)
28.956
mm
(Equiv. 1.14 in.) - Length (B)
101.600
mm
(Equiv. 4 in.) - Actual Square Size (A) 19.177 mm
- More Information With 0.38mm grinding stock on O.D
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- SHSG-P75
- SHSGP75
