0R-0191-0152-HCS-T25 - Datasheet
MBA
Category Information

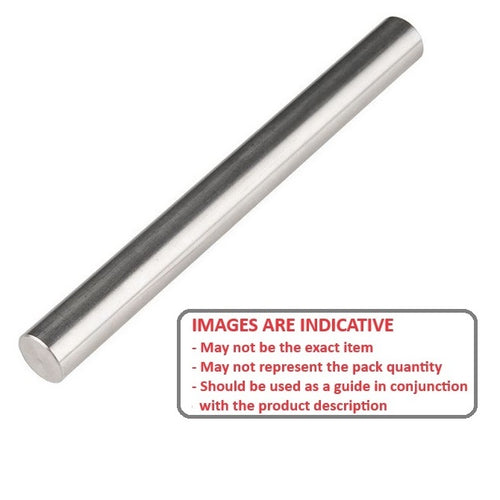

Shafting - Precision Ground - High Carbon SteelHigh Carbon Steel Precision Ground Shafting. Precision ground shafting. AISI C1060. Hardened and recommended for use with precision bearings.
- An expanded range may be available on special order. Please enquire.
- Centreless ground
Product Data

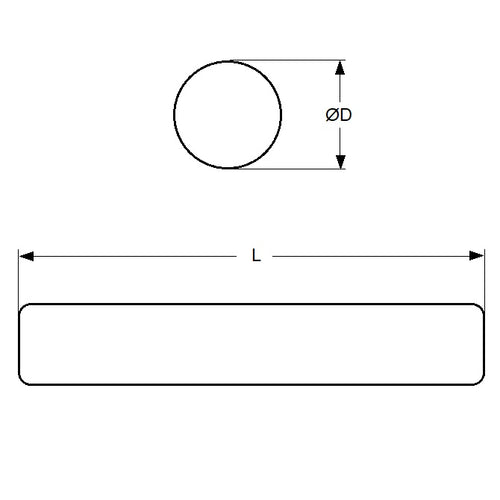

- Diameter (d)
:
19.050
mm
- 0.0127 / - 0.0254
(Equiv. 0.75 in.) - Length (L)
152.4
mm
(Equiv. 6 in.) - Material C1060 Case Hardened Steel
- Surface Finish 0.30 um Microns
- Hardness HRC 60-63
- Ends Finished and Chamfered
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 1555T22-1/2FT
- Thompson QS3-4Lx6
- S40PH0-CHS6-012
- S40PH0CHS6012
- 1555T221/2FT
- TLM1549
- TLM-1549
- QS34Lx6
