FRB-3RS - Datasheet

MBA

Category Information

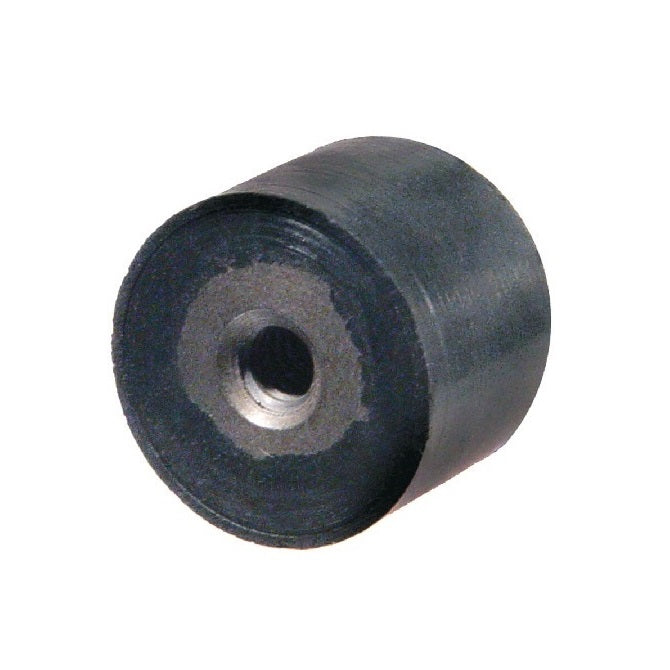

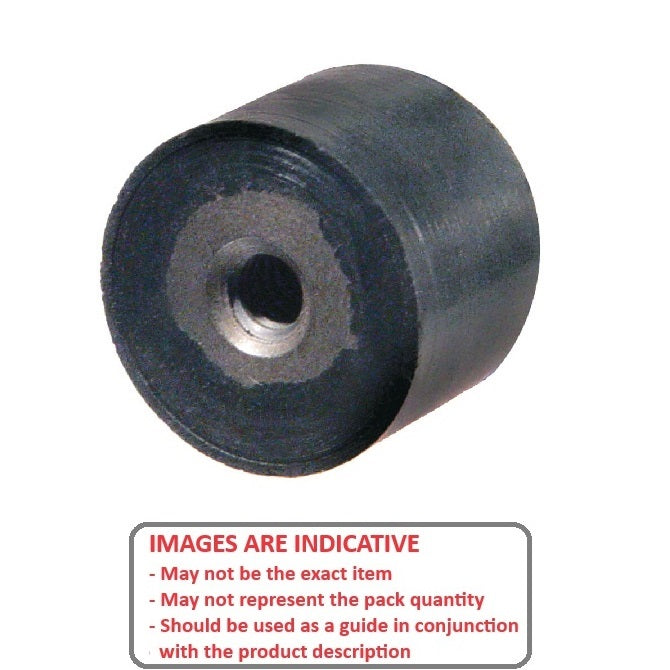

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

  • Vibration-damping component with a female (internal) threaded hole, which screws onto a bolt or screw to be securely attached.
  • Used to protect equipment by absorbing shock, reducing noise, preventing sliding, and minimizing vibration in mechanical, industrial, and automotive applications.

Product Data

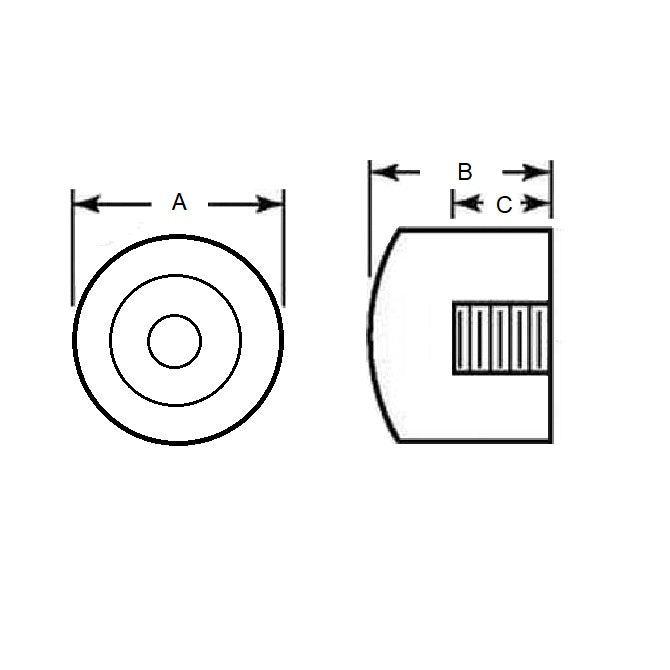

  • Diameter (A) : 19.050 mm
    (Equiv. 0.75 in.)
  • Height (B) 15.875 mm
    (Equiv. 0.625 in.)
  • Thread 1/4-20 UNC (6.35mm)
  • Thread Length 6.350 mm
  • End Curved
  • Durometer 70A
  • Colour Black
  • 9.525
  • Material Neoprene Rubber
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9456K76
