CLP-191-0889-CZ-HB - Datasheet
MBA
Category Information

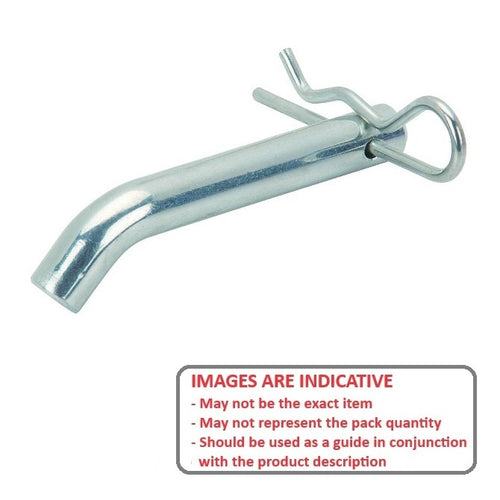

Pins - Clevis - Handle - Bent - Pin LockingPin Locking Bent Handle Clevis Pins. Also known as Hitch Pins. Heat treated.
- Non-threaded fastener with a head on one end and a hole/groove on the other, used to connect two or more parts in a way that allows for rotation, similar to a bolt, by passing through aligned holes.
 - A retaining pin, such as a cotter pin, E-clip or R-clip, is inserted into the hole/groove at the end to keep the clevis pin secured in place.
 - Bent at a 15o angle
 - Includes zinc plated R-Clip

Product Data

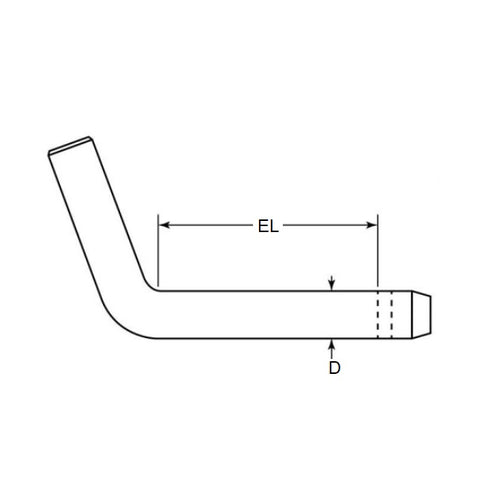

- Nominal Pin Diameter (D)
:
19.05
mm
- 0.10 / - 0.28
(Equiv. 0.75 in.) - Grip Length (EL)
88.90
mm
+ 0.51 / - 0.00
(Equiv. 3.5 in.) - Pin Finish Zinc Plated
 - Handle Finish Zinc Plated
 - Handle Material Zinc Plated
 - Material Carbon Steel Heat Treated

Product Compliance and Data
Additional Resources
Cross References
- 90146A214
 - CLP1910889ZHB
 - WMG-45
 - WMG45
