P-025T-018-050A - Datasheet

MBA

Category Information

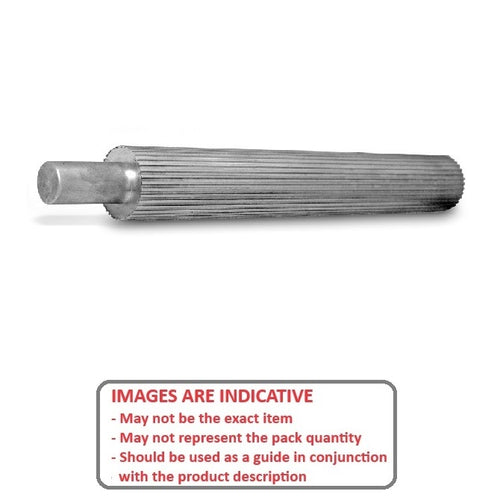

Pulleys - Metric Timing Stock - 2.500mm Pitch T2.5 Aluminium

2.500mm Pitch T2.5 Aluminium Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
  • After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.

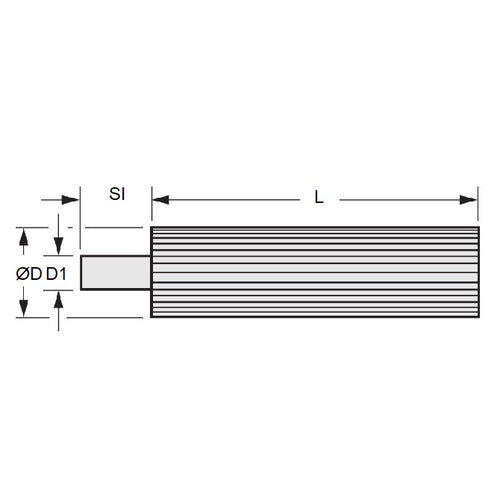

Product Data

  • Number of Teeth : 18
  • Min. Usable Length (L) 50.0 mm
    (Equiv. 1.969 in.)
  • Pitch Diameter (PD) 14.40 mm
    (Equiv. 0.567 in.)
  • Outside Diameter (OD) 13.80 mm
  • Shank Diameter (D1) 9.50 mm
  • Shank Length (Sl) 20.0 mm
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 18T2.5-PS50A
  • 18T25PS50A
  • A6A31M018T05
