BP0110-0180-0250-DP - Datasheet
MBA
Category Information

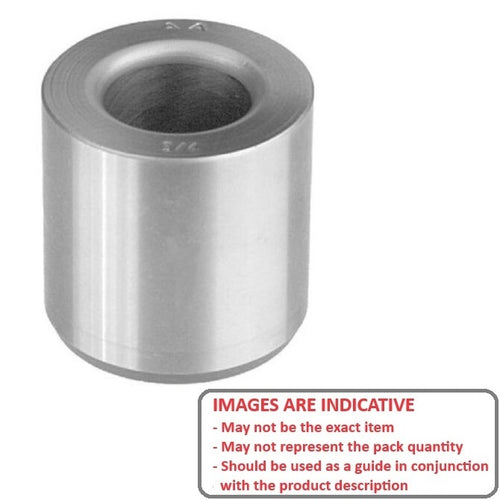

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

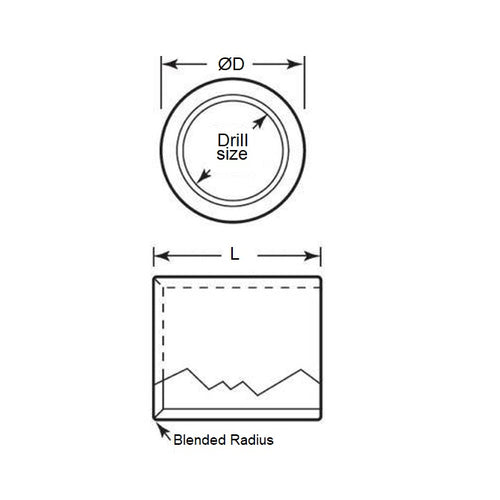

- Outside Diameter (OD)
:
18.000
mm
+ 0.028 / + 0.039
(Equiv. 0.709 in.) - Drill Size
11.000
mm
+ 0.006 / 0.017
(Equiv. 0.433 in.) - Length
25.000
mm
(Equiv. 0.984 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- DM-11025
- DM11025
