SKF9RS - Datasheet
MBA
Category Information

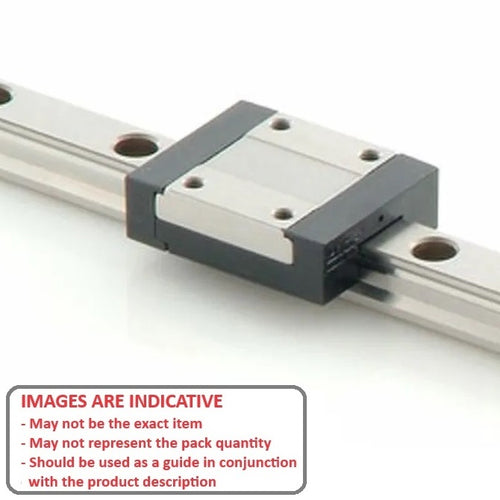

Linear - Rail Systems Miniature ProfileRail Systems Miniature Profile Linear. Ideal for precision applications where mounting space is limited
- Gothic arch grooves at raceway contacts enables slide to sustain loads & movement from any direction.
- Made from stainless steel or plastic for corrosion resistance. End caps have oil holes for easy relubrication.
Product Data
- Load Capacity : 188.69 Kg
- No. Of Carriages 2.00

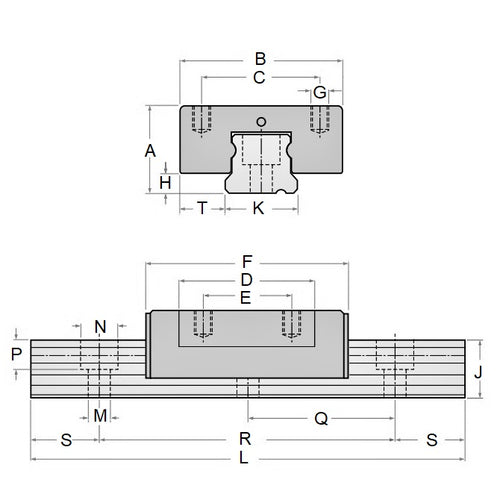

- Rail Length (L)
290.00
mm
(Equiv. 11.417 in.) - Carriage Length (F/D) 32.00 / 21.50 mm
- Rail Dimensions (J/K) 6.50 / 9.00 mm
- Carriage Dimensions (A/B) 10.00 / 20.00 mm
- P 3.50 mm
- Rail Bolt Distance (R) 260.00 mm
- Rail Bolt Distance (Q) 20.00 mm
- Carriage Bolt Distance (C) 15.00 mm
- Carriage Bolt Distance (E) 10.00 mm
- More Information For more information please contact us
Product Compliance and Data
Additional Resources
Cross References
- SKF-9
- SKF9
